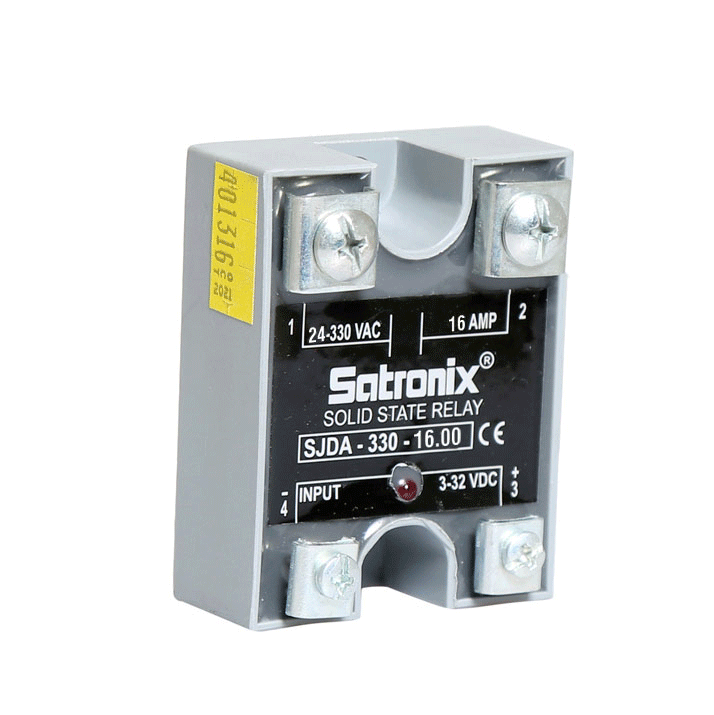

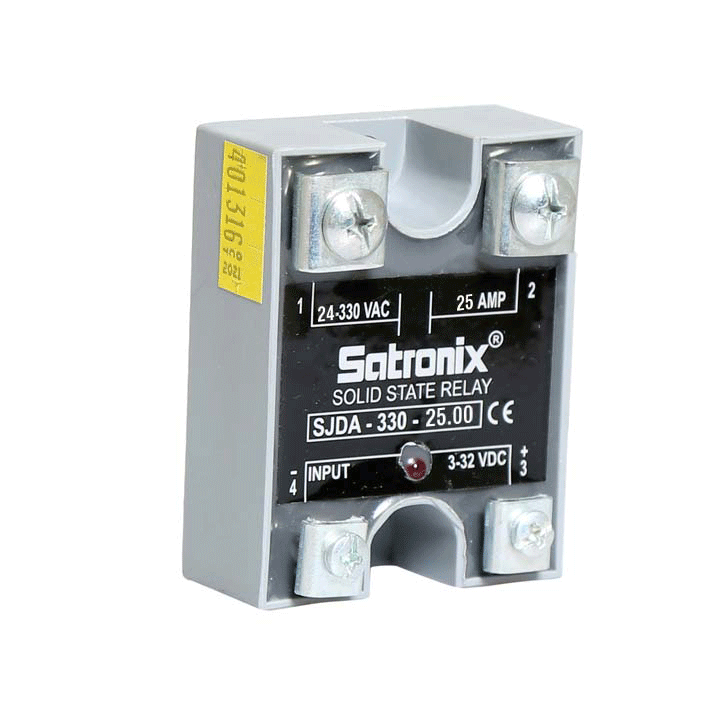

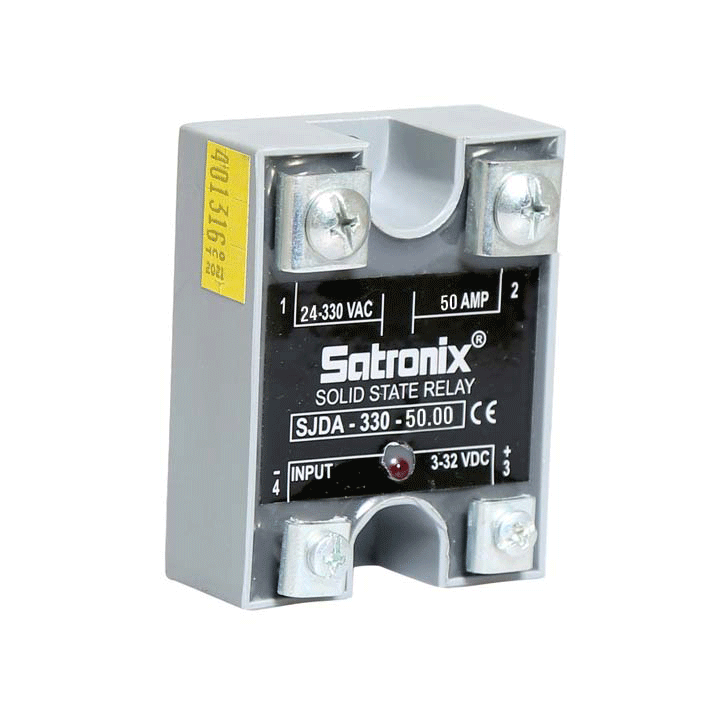

A Single Phase DC- AC Panel Mount Solid State Relay permits high-current AC loads from lower voltage DC control integrated circuits. It is a DC to AC SSR having input 3-32VDC and three different output ranges i.e. 24-330VAC, 24-480VAC and 24-660VAC.
The Off-state leakage current (IDRM) is 10mA. Each one of these relays is fortified with four screw terminals (for use with fork or ring connectors) and a plastic cover that glides over the top of the relay to guard the terminals.
Solid-state relays are a better option over mechanical relays. The benefit of using SSR is that it can be interchanged by much lower current and at a much lower voltage than most mechanical relays. Solid-state relays do not contain moving contacts, so it can be substituted much faster and for longer periods without wearing out.
A Panel Mount SSR is a control relay with remote input and output, whose functions are attained by means of electronic mechanisms without the use of moving parts like those found in electromechanical relays.
Satronix (India) Private Limited (estd in 1985 at Mumbai (Maharashtra, India), is a prime manufacturer of Single Phase DC- AC Panel Mount Solid State Relay in India. Our ultra-modern infrastructural set up helps in providing a high quality range of products. The infrastructure division is further separated into several units like manufacturing, procurement, quality control, sales and marketing, R & D, warehouse and logistics. Highly qualified team of professionals carry out all the business development in a hassle-free manner.
These headings can help you choose SSRs based on their key attributes
| Model | A Rating | Input | Output | Control Voltage | Control Current Range | Pick-up Voltage | Turn-on (max) | Turn-off (max) | Drop Out Voltage | Input Resistance | Current Range with proper heat sink(IT) | Surge Current non-repetitive t = 10msecs (ITEMS) | Voltage Drop @ Current (VTM) | Voltage Range (VRMS) | Over Voltage Rating (PIV) Transient Peak | Off-state leakage current @ voltage – (IDRM) | Holding current (IH) | Dv/Dt @Voltage (out) | I2T Fusing I2t (10 ms) (Value In Square) | Frequency Range | Dielectric Strength | Galvanic Separation (Input to Output to Base) | Weight | Storage Temp. | Junction Temperature |
|---|
