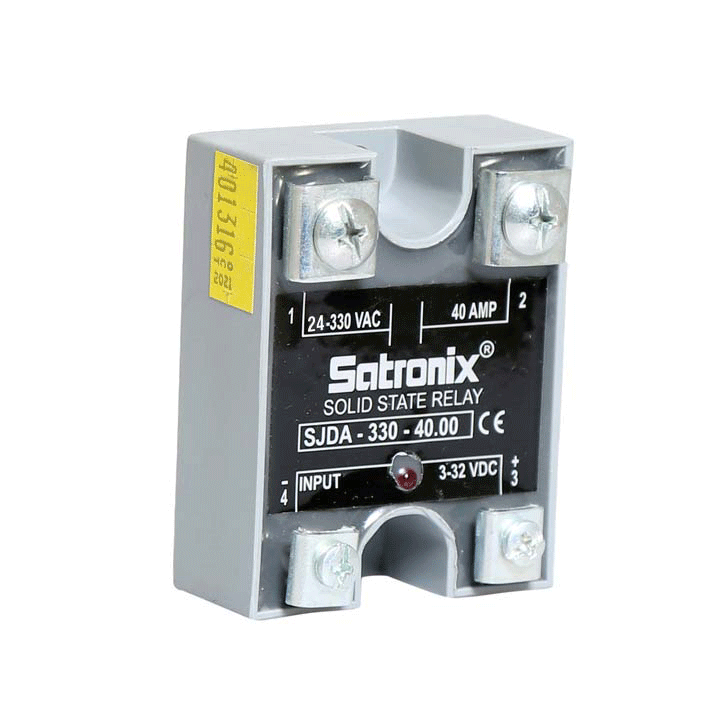

Single Phase DC-AC Panel Mount 40A Solid State Relay is an electronic switching device designed for the controlled transfer of electrical power between a direct current (DC) source and an alternating current (AC) load within a single-phase electrical system. Unlike traditional electromechanical relays, which use mechanical contacts, this type of relay utilizes semiconductor components like thyristor or triacs for the switching operation. With a maximum current rating of 40 amperes, this particular SSR is engineered to handle substantial power loads, making it suitable for applications where high electrical loads are involved.Â
The panel mount designation indicates that it is specifically designed for secure installation on a panel or surface, ensuring easy accessibility and seamless integration into various electrical systems. This type of SSR is commonly employed in industrial automation, heating and cooling systems, lighting controls, and various other applications where precise and reliable control of AC loads is required. Its solid-state construction offers benefits such as faster switching speeds, reduced electromagnetic interference, and a longer operational lifespan compared to conventional relays with moving parts. This relay serves as a dependable solution for switching AC loads with the input signal originating from a DC source, showcasing versatility across a wide range of electrical setups.
These headings can help you choose SSRs based on their key attributes
Model | A Rating | Input | Output | Control Voltage | Control Current Range | Pick-up Voltage | Turn-on (max) | Turn-off (max) | Drop Out Voltage | Input Resistance | Current Range with proper heat sink(IT) | Surge Current non-repetitive t = 10msecs (ITEMS) | Voltage Drop @ Current (VTM) | Voltage Range (VRMS) | Over Voltage Rating (PIV) Transient Peak | Off-state leakage current @ voltage – (IDRM) | Holding current (IH) | Dv/Dt @Voltage (out) | I2T Fusing I2t (10 ms) (Value In Square) | Frequency Range | Dielectric Strength | Galvanic Separation (Input to Output to Base) | Weight | Storage Temp. | Junction Temperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
(SJDA-330-10) | 10A | Input 3-32VDC | Output 24-330VAC | 3 - 32 VDC | <10 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 10 A | 120 A | 1.5 VA CMS | 25-330 VAC rms | 800/1200 V Peak | 10 mA | 50 mA | 400 V/ μs | 78 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-10) | 10A | Input 3-32VDC | Output 24-480VAC | 3 - 32 VDC | <10 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 10A | 120 A | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 50 mA | 400 V/ μs | 78 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-330-16) | 16A | Input 3-32VDC | Output 24-330VAC | 3 - 32 VDC | <10 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 16A | 160A | 1.5 VA CMS | 25-330VAC | 800/1200 V Peak | 10 mA | 70 mA | 400 V/ μs | 144 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-16) | 16A | Input 3-32VDC | Output 24-480VAC | 3 - 32 VDC | <10 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 16A | 160A | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 70 mA | 400 V/ μs | 144 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-25) | 25A | Input 3-32VDC | Output 24-480VAC | 3 - 32 VDC | <10 mA | 3 VDC | 10 ms | N/A | 1 VDC | Current regulator | 25A | 260A | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 120 mA | 400 V/ μs | 340 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-330-25) | 25A | Input 3-32VDC | Output 24-330VAC | 3 - 32 VDC | <10 mA | 3 VDC | 10 ms | N/A | 1 VDC | Current regulator | 40A | 260A | 1.5 VA CMS | 25-330VAC | 800/1200 V Peak | 10 mA | 120 mA | 400 V/ μs | 340 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-330-40) | 40A | Input 3-32VDC | Output 24-330VAC | 3 - 32 VDC | <10 mA | 180 VAC | 10 ms | 10 ms | 1 VDC | Current regulator | 40A | 300A | 1.5 VA CMS | 25-330VAC | 800/1200 V Peak | 10 mA | 250 mA | 400 V/ μs | 800 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-40) | 40A | Input 3-32VDC | Output 24-480VAC | 3 - 32 VDC | <10 mA | 180 VAC | 10 ms | 10 ms | 1 VDC | Current regulator | 40A | 300A | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 250 mA | 400 V/ μs | 800 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-330-50) | 50A | Input 3-32VDC | Output 24-330VAC | 3 - 32 VDC | <10 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 50A | 260A | 1.5 VA CMS | 25-330VAC | 800/1200 V Peak | 10 mA | 120 mA | 400 V/ μs | 340 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-50) | 50A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 50A | 520 A | 1. VACrms | 25 – 480 VACrms (1600 Vpk) | 800/1200 V Peak | 10 mA | 250 mA | 1000 V/ µs | 1350 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-60) | 60A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 60A | 950 A | 1 VAC rms | 25 – 480 VACrms (1600 Vpk) | 800/1200 V Peak | 10 mA | 250 mA | 1000 V/ µs | 4550 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-60) | 60A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 50A | 520 A | 1. VACrms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 1350 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-75) | 75A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 75A | 1000 A | 1 VAC rms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/µs | 5000 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-75) | 75A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 75A | 1000 A | 1 VAC rms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250 mA | 1000 V/µs | 5000 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-90) | 90A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 90A | 1250 A | 1 VAC rms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 6000 A² | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-90) | 90A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 90A | 1250 A | 1 VAC rms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 6000 A² | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-110) | 110A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 110A | 1430 A | 1..2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 6600 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-110) | 110A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 110A | 1430 A | 1..2 VACrms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 6600 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-125) | 125A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 125A | 1500 A | 1.2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 11200 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-125) | 125A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 125A | 1500 A | 1.2 VACrms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 11200 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-150) | 150A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 150A | 1650 A | 1.2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 12500 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-150) | 150A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 150A | 1650 A | 1.2 VACrms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 12500 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-175) | 175A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 175A | 1700 A | 1. 2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 14500 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-175) | 175A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 175A | 1700 A | 1. 2 VACrms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 14500 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-480-205) | 205A | Input 3-32VDC | Output 24-480VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 205A | 2250 A | 1.2VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 25300 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SJDA-660-205) | 205A | Input 3-32VDC | Output 24-660VAC | 4 – 32 VDC | <=25 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 205A | 2250 A | 1.2VACrms | 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 25300A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-330-10) | 10A | Input 90-280VAC | Output 24-330VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 10 A | 120 A | 1.5 VA CMS | 25-330 VAC | 800/1200 V Peak | 10 mA | 50 mA | 400 V/ μs | 78 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-480-10) | 10A | Input 90-280VAC | Output 24-480VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 10 A | 120 A | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 50 mA | 400 V/ μs | 78 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-330-16) | 16A | Input 90-280VAC | Output 24-330VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 16 A | 160 A | 1.5 VA CMS | 25-330 VAC | 800/1200 V Peak | 10 mA | 70 mA | 400 V/ μs | 144 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-480-16) | 16A | Input 90-280VAC | Output 24-480VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 16 A | 160 A | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 70 mA | 400 V/ μs | 144 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-330-25) | 25A | Input 90-280VAC | Output 24-330VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 25A | 260 | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 120 mA | 400 V/ μs | 340 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-480-25) | 25A | Input 90-280VAC | Output 24-480VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 25A | 260 | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 120 mA | 400 V/ μs | 340 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-330-40) | 40A | Input 90-280VAC | Output 24-330VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 40A | 300A | 1.5 VA CMS | 25-330 VAC | 800/1200 V Peak | 10 mA | 250 mA | 400 V/ μs | 800 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-480-40) | 40A | Input 90-280VAC | Output 24-480VAC | 80 - 280 VAC | 9 - 18 mA | 180 VAC | 20ms | 30ms | 45 VAC | Current regulator | 40A | 300A | 1.5 VA CMS | 25-480 VAC rms | 800/1200 V Peak | 10 mA | 250 mA | 400 V/ μs | 800 A²S | 47 – 70 Hz | 2500 VAC – effective | 4000 VAC | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAA-480-50) | 50A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 50A | 520 A | 1. VACrms | 25 – 480 VACrms (1600 Vpk) | 800/1200 V Peak | 10 mA | 250 mA | 1000 V/ µs | 1350 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-50) | 50A | Input 90-280VAC | Output 24-660VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 50 A | 550 A | 1.6 VAC | 25-660VAC rms | 1600/1800 V peak | 10 mA | 1000 V/ ms | 3000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C | |
(SAA-480-60) | 60A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 60A | 950 A | 1 VAC rms | 25 – 480 VACrms (1600 Vpk) / 48 – 660 VAC rms (1800 Vpk) | N/A | 10 mA | 250 | 1000 V/ µs | 4550 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-60) | 60A | Input 90-280VAC | Output 24-660VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SAA-480-75) | 75A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 75A | 1000 A | 1 VAC rms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/µs | 5000 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-75) | 75A | Input 90-280VAC | Output 24-660VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 75A | 1150 A | 1.6 VAC | 25-660VAC rms | 1600/1800 V peak | 10 mA | N/A | 1000 V/ ms | 5000A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAA-480-90) | 90A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 90A | 1250 A | 1 VAC rms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 6000 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-90) | 90A | Input 90-280VAC | Output 24-660VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 90 A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000 V/ ms | 7200A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAA-480-110) | 110A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 110A | 1430 A | 1..2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 6600 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-110) | 110A | Input 90-280VAC | Output 24-660VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SAA-480-125) | 125A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 125A | 1500 A | 1.2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250 mA | 1000 V/ µs | 11200 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-125) | 125A | Input 90-280VAC | Output 24-660VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 125A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000 V/ µs | 7500 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAA-480-150) | 150A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 150A | 1650 A | 1.2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 12500 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 1 25 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-150) | 150A | Input 90-280VAC | Output 24-660VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 150A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 8000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAA-480-175) | 175A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 175A | 1700 A | 1. 2 VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 14500 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-175) | 175A | Input 90-280VAC | Output 24-660VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 175A | 1500A | 1.6VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 15000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAA-480-205) | 205A | Input 90-280VAC | Output 24-480VAC | 90 – 280 VAC /17-80VAC | <10 mA | 90 VAC | 20ms | 30ms | 10 VAC | Current regulator | 205A | 2250 A | 1.2VACrms | 25 – 480 VACrms (1600 Vpk) | N/A | 10 mA | 250mA | 1000 V/ µs | 25300 A²S | 47 – 70 Hz | 2500 to 4000 VACrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SAAC-660-205) | 205A | Input 90-280VAC | Output 24-660VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 205A | 2250 | 1.6VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 25000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(S1–110–D-25AA–12) | 25A | 4-20 mA | 48-140 VAC rms | N/A | 48-140 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 1600 | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–240–D-25AA–12) | 25A | 4-20 mA | 180-330 VAC rms | N/A | 180-330 VAC rms | N/A | N/A | N/A | N/A | 25 A | 260 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 450 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–480–D-25AA–12) | 25A | 4-20 mA | 280-480VAC rms | N/A | 280-480VAC rms | N/A | N/A | N/A | N/A | 25 A | 260 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 450 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–600–D-25AA–12) | 25A | 4-20 mA | 330 - 600VAC rms | N/A | 330 - 600VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 1600 | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-25AB–12) | 25A | 4-20 mA /0–10 VDC | 48- 140 VAC rms | 4-20 mA /0–10 VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-25AC–12) | 25A | 4-20mA/0-5 VDC | 48- 140 VAC rms | 4-20mA/0-5 VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-25AB–12) | 25A | 4-20mA/0–10 VDC | 180 - 330 VAC rms | 4-20mA/0–10 VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-25AC–12) | 25A | 4-20mA/0-5VDC | 180 - 330 VAC rms | 4-20mA/0-5VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-25AB–12) | 25A | 4-20mA/0–10 VDC | 280 – 480VAC rms | 4-20mA/0–10 VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 48-480VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-25AC–12) | 25A | 4-20mA/ 0–5 VDC | 280 – 480VAC rms | 4-20mA/ 0–5 VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 48-480VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-25AB–12) | 25A | 4-20mA/0–10 VDC | 330 – 660VAC rms | 4-20mA/0–10 VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 48-660VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-25AC–12) | 25A | 4-20mA/0–5 VDC | 330 – 660VAC rms | 4-20mA/0–5 VDC | 0 - 10VDC | 0.7 VDC | N/A | N/A | 0.2 VDC | N/A | 25 A | 260 A | 1.6 | 48-660VAC | 1600 | <5 mA | 75 mA | 1000 V/ms | 450 A²S | 50/60 Hz | 4000 Vrms | N/A | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–110–D-50AA–12) | 50A | 4-20 mA | 48-140 VAC rms | 4-20 mA | 48-140 VAC rms | N/A | N/A | N/A | N/A | 50A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–240–D-50AA–12) | 50A | 4-20 mA | 180-330 VAC rms | 4-20 mA | 180-330 VAC rms | 30 mA | N/A | <10 VDC | N/A | 50A | 625 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–480–D-50AA–12) | 50A | 4-20 mA | 280-480VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 50A | 625 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–600–D-50AA–12) | 50A | 4-20 mA | 330 - 600VAC rms | 4-20 mA | 330 - 600VAC rms | N/A | N/A | N/A | N/A | 50A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-50AB–12) | 50A | 4-20 mA /0–10 VDC | 48- 140 VAC rms | 4-20 mA /0–10 VDC | 48 - 140 VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-50AC–12) | 50A | 4-20mA/0-5 VDC | 48- 140 VAC rms | 4-20 mA /0–10 VDC | 48 - 140 VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-50AB–12) | 50A | 4-20mA/0–10 VDC | 180 - 330 VAC rms | 4-20mA/0–10 VDC | 180 - 330 VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-50AC–12) | 50A | 4-20mA/0-5VDC | 180 - 330 VAC rms | 4-20mA/0-5VDC | 180 - 330 VAC rms | N/A | N/A | N/A | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-50AB–12) | 50A | 4-20mA/0–10 VDC | 280 – 480VAC rms | 4-20mA/0–10 VDC | 280 – 480VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-50AC–12) | 50A | 4-20mA/ 0–5 VDC | 280 – 480VAC rms | 4-20mA/ 0–5 VDC | 280 – 480VAC rms | N/A | N/A | N/A | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-50AB–12) | 50A | 4-20mA/0–10 VDC | 330 – 660VAC rms | 4-20mA/0–10 VDC | 330 – 600VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-50AC–12) | 50A | 4-20mA/0–5 VDC | 330 – 660VAC rms | 4-20mA/0–5 VDC | 330 – 600VAC rms | N/A | N/A | N/A | N/A | 50A | 625 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 1680 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–110–D-75AA–12) | 75A | 4-20 mA | 48-140 VAC rms | 4-20 mA | 48-140 VAC rms | N/A | N/A | N/A | N/A | 75A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–240–D-75AA–12) | 75A | 4-20 mA | 180-330 VAC rms | 4-20 mA | 180-330 VAC rms | 30 mA | N/A | <10 VDC | N/A | 75A | 1150 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 6600 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–480–D-75AA–12) | 75A | 4-20 mA | 280-480VAC rms | 4-20 mA | 280-480VAC rms | N/A | N/A | N/A | N/A | 75A | 1150 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 6600 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–600–D-75AA–12) | 75A | 4-20 mA | 330 - 600VAC rms | 4-20 mA | 330 - 600VAC rms | N/A | N/A | N/A | N/A | 75A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-75AB–12) | 75A | 4-20 mA /0–10 VDC | 48- 140 VAC rms | 4-20 mA /0–10 VDC | 48 - 140 VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 75A | N/A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100mA | 1000 V/ms | 7800 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-75AC–12) | 75A | 4-20mA/0-5 VDC | 48- 140 VAC rms | 4-20mA/0-5 VDC | 48 - 140 VAC rms | N/A | N/A | N/A | N/A | 75A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-75AB–12) | 75A | 4-20mA/0–10 VDC | 180 - 330 VAC rms | 4-20mA/0–10 VDC | 180 - 330 VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 75A | N/A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100mA | 1000 V/ms | 7800 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-75AC–12) | 75A | 4-20mA/0-5VDC | 180 - 330 VAC rms | 4-20mA/0-5VDC | 180 - 330 VAC rms | N/A | N/A | N/A | N/A | 75A | N/A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100mA | 1000 V/ms | 7800 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-75AB–12) | 75A | 4-20mA/0–10 VDC | 280 – 480VAC rms | 4-20mA/0–10 VDC | 280 – 480VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 75A | N/A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100mA | 1000 V/ms | 7800 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-75AC–12) | 75A | 4-20mA/ 0–5 VDC | 280 – 480VAC rms | 4-20mA/ 0–5 VDC | 280 – 480VAC rms | N/A | N/A | N/A | N/A | 75A | N/A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100mA | 1000 V/ms | 7800 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-75AB–12) | 75A | 4-20mA/0–10 VDC | 330 – 660VAC rms | 4-20mA/0–10 VDC | 330 – 600VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 75A | N/A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100mA | 1000 V/ms | 7800 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-75AC–12) | 75A | 4-20mA/0–5 VDC | 330 – 660VAC rms | 4-20mA/0–5 VDC | 330 – 600VAC rms | N/A | N/A | N/A | N/A | 75A | N/A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100mA | 1000 V/ms | 7800 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–110–D-90AA–12) | 90A | 4-20 mA | 48-140 VAC rms | 4-20 mA | 48-140 VAC rms | N/A | N/A | N/A | N/A | 90A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–240–D-90AA–12) | 90A | 4-20 mA | 180-330 VAC rms | 4-20 mA | 180-330 VAC rms | 30 mA | N/A | <10 VDC | N/A | 90A | 1500 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–480–D-90AA–12) | 90A | 4-20 mA | 280-480VAC rms | 4-20 mA | 280-480VAC rms | N/A | N/A | N/A | N/A | 90A | 1500 A | 1.6 | 48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC | 1600 | <10 mA | N/A | N/A | 250 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–600–D-90AA–12) | 90A | 4-20 mA | 330 - 600VAC rms | 4-20 mA | 330 - 600VAC rms | N/A | N/A | N/A | N/A | 90A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-90AB–12) | 90A | 4-20 mA /0–10 VDC | 48- 140 VAC rms | 4-20 mA /0–10 VDC | 48 - 140 VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-110–D-90AC–12) | 90A | 4-20mA/0-5 VDC | 48- 140 VAC rms | 4-20mA/0-5 VDC | 48 - 140 VAC rms | N/A | N/A | N/A | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-90AB–12) | 90A | 4-20mA/0–10 VDC | 180 - 330 VAC rms | 4-20mA/0–10 VDC | 180 - 330 VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-240–D-90AC–12) | 90A | 4-20mA/0-5VDC | 180 - 330 VAC rms | 4-20mA/0-5VDC | 180 - 330 VAC rms | N/A | N/A | N/A | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-90AB–12) | 90A | 4-20mA/0–10 VDC | 280 – 480VAC rms | 4-20mA/0–10 VDC | 280 – 480VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-480–D-90AC–12) | 90A | 4-20mA/ 0–5 VDC | 280 – 480VAC rms | 4-20mA/ 0–5 VDC | 280 – 480VAC rms | N/A | N/A | N/A | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-90AB–12) | 90A | 4-20mA/0–10 VDC | 330 – 660VAC rms | 4-20mA/0–10 VDC | 330 – 600VAC rms | 0 - 10VDC | 0.7 VDC | 0.2 VDC | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(S1–PC-660–D-90AC–12) | 90A | 4-20mA/0–5 VDC | 330 – 660VAC rms | 4-20mA/0–5 VDC | 330 – 600VAC rms | N/A | N/A | N/A | N/A | 90A | 1500 A | 1.85 | 90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC | 1600 | <5 mA | N/A | N/A | 100 mA | 1000 V/ms | 11000 A2S | 50/60 Hz | 4000 Vrms | Approx. 100 g | – 40 °C to 100 °C | 100 °C |
(SDAC-660-50) | 50A | 3-32 VDC | 24-660 VAC | 3-32 VDC | 10 -30 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 50 A | 550 A | 1.6 VAC | 25-660VAC rms | 1600/1800 V peak | 10 mA | 1000 V/ ms | 3000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C | |
(SDAC-660-75) | 75A | 3-32 VDC | 24-660 VAC | 3-32 VDC | 10 -30 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 75A | 1150 A | 1.6 VAC | 25-660VAC rms | 1600/1800 V peak | 10 mA | N/A | 1000 V/ ms | 5000A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SDAC-660-90) | 90A | 3-32 VDC | 24-660 VAC | 3-32 VDC | 10 -30 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 90 A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000 V/ ms | 7200A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SDAC-660-125) | 125A | 3-32 VDC | 48-660 VAC | 3-32 VDC | 10 -30 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 125A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000 V/ µs | 7500 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SDAC-660-150) | 150A | 3-32 VDC | 48-660 VAC | 3-32 VDC | 10 -30 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 150A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 8000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SDAC-660-175) | 175A | 3-32 VDC | 48-660 VAC | 3-32 VDC | 10 -30 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 175A | 1500A | 1.6VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 15000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SDAC-660-205) | 205A | 3-32 VDC | 48-660 VAC | 3-32 VDC | 10 -30 mA | 3 VDC | 10 ms | 10 ms | 1 VDC | Current regulator | 205A | 2250 | 1.6VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 25000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAAC-660-50) | 50A | Input 90-280VAC | 48-660 VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 50 A | 550 A | 1.6 VAC | 25-660VAC rms | 1600/1800 V peak | 10 mA | N/A | 1000 V/ ms | 3000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAAC-660-75) | 75A | Input 90-280VAC | 48-660 VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 75A | 1150 A | 1.6 VAC | 25-660VAC rms | 1600/1800 V peak | 10 mA | N/A | 1000 V/ ms | 5000A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAAC-660-90) | 90A | Input 90-280VAC | 48-660 VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 90 A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000 V/ ms | 7200A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAAC-660-125) | 125A | Input 90-280VAC | 48-660 VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 125A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000 V/ µs | 7500 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAAC-660-150) | 150A | Input 90-280VAC | 48-660 VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 150A | 1350 A | 1.6 VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 8000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAAC-660-175) | 175A | Input 90-280VAC | 48-660 VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 175A | 1500A | 1.6VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 15000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(SAAC-660-205) | 205A | Input 90-280VAC | 48-660 VAC | 160 – 280 VAC | 4-18 mA | 160 VAC | 10 ms | 10 ms | 45 VAC | Current regulator | 205A | 2250 | 1.6VAC | 25-660VAC rms | 1800 V peak | 10 mA | N/A | 1000V/ ms | 25000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 106 g | – 40 °C to 125 °C | 100 0 C |
(S2DA-280-10D.1) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10D.2) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10D.3) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10D.4) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10D.5) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10E.1) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10E.2) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10E.3) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10E.4) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-10E.5) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10D.1) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10D.2) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10D.3) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10D.4) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10D.5) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10E.1) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10E.2) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10E.3) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10E.4) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-10E.5) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16D.1) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16D.2) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16D.3) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16D.4) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16D.5) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16E.1) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16E.2) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16E.3) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16E.4) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-16E.5) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16D.1) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16D.2) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16D.3) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16D.4) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16D.5) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16E.1) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16E.2) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16E.3) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16E.4) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-16E.5) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25D.1) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25D.2) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25D.3) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25D.4) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25D.5) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25E.1) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25E.2) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25E.3) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25E.4) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-25E.5) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25D.1) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25D.2) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25D.3) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25D.4) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25D.5) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25E.1) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25E.2) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25E.3) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25E.4) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-25E.5) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40D.1) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40D.2) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40D.3) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40D.4) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40D.5) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40E.1) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40E.2) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40E.3) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40E.4) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-40E.5) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40D.1) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40D.2) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40D.3) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40D.4) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40D.5) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40E.1) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40E.2) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40E.3) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40E.4) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-40E.5) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50D.1) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50D.2) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50D.3) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50D.4) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50D.5) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50E.1) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50E.2) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50E.3) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50E.4) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-280-50E.5) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50D.1) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50D.2) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50D.3) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50D.4) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50D.5) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50E.1) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50E.2) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50E.3) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50E.4) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2DA-480-50E.5) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10D.1) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10D.2) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10D.3) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10D.4) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10D.5) | 10A | 4-15VDC | 12-280 VAC rms | 4– 15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10E.1) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10E.2) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10E.3) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10E.4) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-10E.5) | 10A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10D.1) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10D.2) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10D.3) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10D.4) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10D.5) | 10A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10E.1) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10E.2) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10E.3) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10E.4) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-10E.5) | 10A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 10 A | 100 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 200 V/ ms | 50 A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16D.1) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16D.2) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16D.3) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16D.4) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16D.5) | 16A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16E.1) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16E.2) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16E.3) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16E.4) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-16E.5) | 16A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16D.1) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16D.2) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16D.3) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16D.4) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16D.5) | 16A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | 24-480 VAC rms | N/A | 4 VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16E.1) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16E.2) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16E.3) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16E.4) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-16E.5) | 16A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | 12-280 VAC rms | N/A | 15VDC | 1 VDC | N/A | 16A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 47 – 63 Hz | 2500 VAC rms – effective 4000 VAC rms – optional | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25D.1) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25D.2) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25D.3) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25D.4) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25D.5) | 25A | 4-15VDC | 12-280 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25E.1) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25E.2) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25E.3) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25E.4) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-25E.5) | 25A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25D.1) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25D.2) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25D.3) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25D.4) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25D.5) | 25A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25E.1) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25E.2) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25E.3) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25E.4) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-25E.5) | 25A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 25A | 250 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 300 V/ ms | 1250A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40D.1) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40D.2) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40D.3) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40D.4) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40D.5) | 40A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40E.1) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40E.2) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40E.3) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40E.4) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-40E.5) | 40A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-280 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40D.1) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40D.2) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40D.3) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40D.4) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40D.5) | 40A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40E.1) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40E.2) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40E.3) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40E.4) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-40E.5) | 40A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 40A | 500 A | 1.6 VAC | 24-480 VAC | 600/800 V peak | 10 mA rms | N/A | 500 V/ ms | 1780A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50D.1) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50D.2) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50D.3) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50D.4) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50D.5) | 50A | 4-15VDC | 12-280 VAC rms | 4-15VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50E.1) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50E.2) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50E.3) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50E.4) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-280-50E.5) | 50A | 15-32 VDC | 12-280 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-280 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50D.1) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50D.2) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50D.3) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50D.4) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50D.5) | 50A | 4-15 VDC | 24-480 VAC rms | 4-15 VDC | N/A | 4 VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50E.1) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50E.2) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50E.3) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50E.4) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S2KDA-480-50E.5) | 50A | 15-32 VDC | 24-480 VAC rms | 15-32 VDC | N/A | 15VDC | 10 ms | 10 ms | 1 VDC | N/A | 50A | 750 A | 1.6 VAC | 24-480 VAC | 1200/1600 V peak | 10 mA rms | N/A | 1000V/ ms | 2520A²S | 47 – 63 Hz | 2500 VAC rms – effective | 4000 VAC rms | Approx. 100 g | – 40 °C to 100 °C / – 40°C to 80 °C | 100 °C |
(S3PDJ-4-10) | 10A | 4-32VDC | 24-480 VAC rms | 4 – 32 VDC | <=25 mA | 4 VDC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 1 VDC | Current regulator | 10 A | 120 A126A | 1.6 VACrms | 25 – 480 VACrms / 48 – 660 VAC rms | N/A | <10 mA | 50 mA | 200 V/ µs | 72 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PDJ-4-16) | 16A | 4-32VDC | 24-480 VAC rms | 4 – 32 VDC | <=25 mA | 4 VDC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 1 VDC | Current regulator | 16A | 160 A168 A | 1.6 VACrms | 25 – 480 VACrms / 48 – 660 VAC rms | N/A | <10 mA | 100mA | 200 V/ µs | 340 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PDJ-4-25) | 25A | 4-32VDC | 24-480 VAC rms | 4 – 32 VDC | <=25 mA | 4 VDC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 1 VDC | Current regulator | 25A | 250 A260 A | 1.6 VACrms | 25 – 480 VACrms / 48 – 660 VAC rms | N/A | <10 mA | 150mA | 500 V/ µs | 1000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PDJ-4-40) | 40A | 4-32VDC | 24-480 VAC rms | 4 – 32 VDC | <=25 mA | 4 VDC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 1 VDC | Current regulator | 40A | 400 A420 A | 1.85 VACrms | 25 – 480 VACrms / 48 – 660 VAC rms | N/A | <10 mA | 250mA | 1000 V/ µs | 1000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PDJ-4-50) | 50A | 4-32VDC | 24-480 VAC rms | 4 – 32 VDC | <=25 mA | 4 VDC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 1 VDC | Current regulator | 50A | 597 A625 A | 1.85 VACrms | 25 – 480 VACrms / 48 – 660 VAC rms | N/A | <10 mA | 250mA | 1000 V/ µs | 4000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PDJ-4-75) | 75A | 4-32VDC | 24-480 VAC rms | 4 – 32 VDC | <=25 mA | 4 VDC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 1 VDC | Current regulator | 75A | 1150 A1185 A | 2.0 VACrms | 25 – 480 VACrms | N/A | <10 mA | 400mA | 1000 V/ µs | 5000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PDJ-4-90) | 90A | 4-32VDC | 24-480 VAC rms | 4 – 32 VDC | <=25 mA | 4 VDC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 1 VDC | Current regulator | 90A | 1150 A1185 A | 2.0 VACrms | 25 – 480 VACrms | N/A | <10 mA | 400mA | 1000 V/ µs | 7200 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PDJ-4-110) | 110A | 4-32VDC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 110A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PDJ-4-125) | 125A | 4-32VDC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 125A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PDJ-4-150) | 150A | 4-32VDC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 150A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PDJ-4-175) | 175A | 4-32VDC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 175A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PDJ-4-205) | 205A | 4-32VDC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 205A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PA-4-10) | 10A | 80-280 VAC | 24-480 VAC rms | 90 – 280 VAC | <10 mA | 90 VAC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 10 VAC | Current regulator | 10 A | 120 A126A | 1.6 VACrms | 25 – 480 VACrms | N/A | <10 mA | 50 mA | 200 V/ µs | 72 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PA-4-16) | 16A | 80-280 VAC | 24-480 VAC rms | 90 – 280 VAC | <10 mA | 90 VAC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 10 VAC | Current regulator | 16A | 160 A168 A | 1.6 VACrms | 25 – 480 VACrms | N/A | <10 mA | 100mA | 200 V/ µs | 340 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PA-4-25) | 25A | 80-280 VAC | 24-480 VAC rms | 90 – 280 VAC | <10 mA | 90 VAC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 10 VAC | Current regulator | 25A | 250 A260 A | 1.6 VACrms | 25 – 480 VACrms | N/A | <10 mA | 150mA | 500 V/ µs | 1000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PA-4-40) | 40A | 80-280 VAC | 24-480 VAC rms | 90 – 280 VAC | <10 mA | 90 VAC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 10 VAC | Current regulator | 40A | 400 A420 A | 1.85 VACrms | 25 – 480 VACrms | N/A | <10 mA | 250mA | 1000 V/ µs | 1000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PA-4-50) | 50A | 80-280 VAC | 24-480 VAC rms | 90 – 280 VAC | <10 mA | 90 VAC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 10 VAC | Current regulator | 50A | 597 A625 A | 1.85 VACrms | 25 – 480 VACrms | N/A | <10 mA | 250mA | 1000 V/ µs | 4000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PA-4-75) | 75A | 80-280 VAC | 24-480 VAC rms | 90 – 280 VAC | <10 mA | 90 VAC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 10 VAC | Current regulator | 75A | 1150 A1185 A | 2.0 VACrms | 25 – 480 VACrms | N/A | <10 mA | 400mA | 1000 V/ µs | 5000 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PA-4-90) | 90A | 80-280 VAC | 24-480 VAC rms | 90 – 280 VAC | <10 mA | 90 VAC | DC input models: 10 msecs AC input models: 20msecs | DC input models: 10 msecsAC input models: 30msecs | 10 VAC | Current regulator | 90A | 1150 A1185 A | 2.0 VACrms | 25 – 480 VACrms | N/A | <10 mA | 400mA | 1000 V/ µs | 7200 A²S | 47 – 70 Hz | 4000 Vrms | N/A | Approx. 300 g | – 40 °C to 100 °C | 100 °C |
(S3PA-4-110) | 110A | 80-280 VAC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 110A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PA-4-125) | 125A | 80-280 VAC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 125A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PA-4-150) | 150A | 80-280 VAC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 150A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PA-4-175) | 175A | 80-280 VAC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 175A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3PA-4-205) | 205A | 80-280 VAC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | 205A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-50AA-16.3.B) | 50A | 4-20mA | 24-480 VAC rms | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 50A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 4750 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-50BB-16.3.B) | 50A | 0-10VDC | 24-480 VAC rms | 0-10VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 50A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 4750 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-50CC-16.3.B) | 50A | 0-5VDC | 24-480 VAC rms | 0-5VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 50A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 4750 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-50DD-16.3.B) | 50A | potentiometer | 24-480 VAC rms | potentiometer | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 50A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 4750 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-75AA-16.3.B) | 75A | 4-20mA | 24-480 VAC rms | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 75A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 14450 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-75BB-16.3.B) | 75A | 0-10VDC | 24-480 VAC rms | 0-10VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 75A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 14450 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-75CC-16.3.B) | 75A | 0-5VDC | 24-480 VAC rms | 0-5VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 75A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 14450 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-75DD16.3.B) | 75A | potentiometer | 24-480 VAC rms | potentiometer | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 75A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 14450 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-90AA-16.3.B) | 90A | 4-20mA | 24-480 VAC rms | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 90A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 19100 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-90BB-16.3.B) | 90A | 0-10VDC | 24-480 VAC rms | 0-10VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 90A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 19100 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-90CC-16.3.B) | 90A | 0-5VDC | 24-480 VAC rms | 0-5VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 90A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 19100 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-90DD-16.3.B) | 90A | potentiometer | 24-480 VAC rms | potentiometer | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 90A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 19100 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(SDD-100-10) | 10A | 3.5 – 32 VDC | 0-100VDC | 3.5 – 32 VDC | 5-100 VDC | N/A | N/A | N/A | Current regulator | 10 A | N/A | 2 | 5-100 | N/A | 0.1 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-200-10) | 10A | 3.5 – 32 VDC | 0-200VDC | 3.5 – 32 VDC | 5-200 VDC | N/A | N/A | N/A | Current regulator | 10 A | N/A | 2 | 5-100 | N/A | 0.1 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-330-10) | 10A | 3.5 – 32 VDC | 0-330VDC | 3.5 – 32 VDC | 5-330VDC | N/A | N/A | N/A | Current regulator | 10 A | N/A | 2 | 5-100 | N/A | 0.1 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-600-10) | 10A | 3.5 – 32 VDC | 0-600VDC | 3.5 – 32 VDC | 5-600VDC | N/A | N/A | N/A | Current regulator | 10 A | N/A | 2 | 5-100 | N/A | 0.1 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-100-20) | 20A | 3.5 – 32 VDC | 0-100VDC | 3.5 – 32 VDC | 5-100 VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | 1.6 | 5-100 | N/A | 0.2 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-200-20) | 20A | 3.5 – 32 VDC | 0-200VDC | 3.5 – 32 VDC | 5-200 VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | 1.6 | 5-100 | N/A | 0.2 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-330-20) | 20A | 3.5 – 32 VDC | 0-330VDC | 3.5 – 32 VDC | 5-330VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | 1.6 | 5-100 | N/A | 0.2 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-600-20) | 20A | 3.5 – 32 VDC | 0-600VDC | 3.5 – 32 VDC | 5-600VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | 1.6 | 5-100 | N/A | 0.2 | 200 µsecs | 300 µsecs | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-100-40) | 40A | 3.5 – 32 VDC | 0-100VDC | 3.5 – 32 VDC | 5-100 VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-200-40) | 40A | 3.5 – 32 VDC | 0-200VDC | 3.5 – 32 VDC | 5-200 VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-330-40) | 40A | 3.5 – 32 VDC | 0-330VDC | 3.5 – 32 VDC | 5-330VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-600-40) | 40A | 3.5 – 32 VDC | 0-600VDC | 3.5 – 32 VDC | 5-600VDC | N/A | N/A | N/A | Current regulator | 20A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Min. 2500 VACrms | N/A | N/A | N/A |
(SDD-600-60) | 60A | 3.5 – 32 VDC | 0-600VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-600-80) | 80A | 3.5 – 32 VDC | 0-600VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-600-100) | 100A | 3.5 – 32 VDC | 0-600VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-1000-10) | 10A | 3.5 – 32 VDC | 0-1000VDC | 3.5 – 32 VDC | 5-1000VDC | N/A | N/A | N/A | N/A | 10A | 60 A | 1.9 V | 5 –1000 VDC | N/A | 10 mA | 600 ms | 2600 ms | N/A | N/A | N/A | N/A | Min. 2500 VAC | 100 g | -40 to 125°C | N/A |
(SDD-1200-10) | 10A | 3.5 – 32 VDC | 0-1200VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-1000-25) | 25A | 3.5 – 32 VDC | 0-1000VDC | 3.5 – 32 VDC | 5-1000VDC | N/A | N/A | N/A | N/A | 25A | 80A | 1.9 V | 5 –1000 VDC | N/A | 10 mA | 600 ms | 2600 ms | N/A | N/A | N/A | N/A | Min. 2500 VAC | 100 g | -40 to 125°C | N/A |
(SDD-1200-25) | 25A | 3.5 – 32 VDC | 0-1200VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-1000-40) | 40A | 3.5 – 32 VDC | 0-1000VDC | 3.5 – 32 VDC | 5-1000VDC | N/A | N/A | N/A | N/A | 40A | 130A | 2 V | 5 –1000 VDC | N/A | 10 mA | 600 ms | 2600 ms | N/A | N/A | N/A | N/A | Min. 2500 VAC | 100 g | -40 to 125°C | N/A |
(SDD-1200-40) | 40A | 3.5 – 32 VDC | 0-1200VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDSCP-480-25) | 25A | 5/ 12/ 24 VDC | 24-480 VAC rms | 5/ 12/ 24/ 32 VDC | 48 – 530V AC rms | 30 mA | 5VDC | 1 VDC | Current regulator | 25A | 500 A | 1.8 VAC | 48 – 530VAC rms | 1600 V peak | 10 mA | 10 ms | 10 ms | 250 mA | 1000V/ms | 2250 A2s | 50/60 Hz | N/A | Approx. 140 g | – 30°C to 80°C | 100 °C |
(SDSCP-480-50) | 50A | 5/ 12/ 24 VDC | 24-480 VAC rms | 5/ 12/ 24/ 32 VDC | 48 – 530V AC rms | 30 mA | 5VDC | 1 VDC | Current regulator | 50A | 520 A | 1.8 VAC | 48 – 530VAC rms | 1600 V peak | 10 mA | 10 ms | 10 ms | 250 mA | 1000V/ms | 5000 A2s | 50/60 Hz | N/A | Approx. 140 g | – 30°C to 80°C | 100 °C |
(SDSCP-480-75) | 75A | 5/ 12/ 24 VDC | 24-480 VAC rms | 5/ 12/ 24/ 32 VDC | 48 – 530V AC rms | 30 mA | 5VDC | 1 VDC | Current regulator | 75A | 1500 A | 2.0 VAC | 48 – 530VAC rms | 1600 V peak | 10 mA | 10 ms | 10 ms | 250 mA | 1000V/ms | 6000 A2s | 50/60 Hz | N/A | Approx. 140 g | – 30°C to 80°C | 100 °C |
(SDSCP-480-90) | 90A | 5/ 12/ 24 VDC | 24-480 VAC rms | 5/ 12/ 24/ 32 VDC | 48 – 530V AC rms | 30 mA | 5VDC | 1 VDC | Current regulator | 90A | 2250 A | 2.0 VAC | 48 – 530VAC rms | 1600 V peak | 10 mA | 10 ms | 10 ms | 250 mA | 1000V/ms | 11200 A2s | 50/60 Hz | N/A | Approx. 140 g | – 30°C to 80°C | 100 °C |
(SDSCP-480-110) | 110A | 5/ 12/ 24 VDC | 24-480 VAC rms | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-10 I/P 250 K) | 10A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-10 I/P 470 K) | 10A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-10 I/P 250 K) | 10A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-10 I/P 470 K) | 10A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-16 I/P 250 K) | 16A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-16 I/P 470 K) | 16A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-16 I/P 250 K) | 16A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-16 I/P 470 K) | 16A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-25 I/P 250 K) | 25A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-25 I/P 470 K) | 25A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-25 I/P 250 K) | 25A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-25 I/P 470 K) | 25A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-40 I/P 250 K) | 40A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-40 I/P 470 K) | 40A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-40 I/P 250 K) | 40A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-40 I/P 470 K) | 40A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-50 I/P 250 K) | 50A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-50 I/P 470 K) | 50A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-50 I/P 250 K) | 50A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-50 I/P 470 K) | 50A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-60 I/P 250 K) | 60A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-60 I/P 470 K) | 60A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-60 I/P 250 K) | 60A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-60 I/P 470 K) | 60A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-90 I/P 250 K) | 90A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-90 I/P 470 K) | 90A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-90 I/P 250 K) | 90A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-90 I/P 470 K) | 90A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-100 I/P 250 K) | 100A | I/P 250 K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-240-100 I/P 470 K) | 100A | I/P 470K Pot | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-100 I/P 250 K) | 100A | I/P 250 K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(PSR-480-100 I/P 470 K) | 100A | I/P 470K Pot | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-240-3 Casing 2C / 3S) | 3A | 3 – 32 VDC | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-330-3 Casing 2C / 3S) | 3A | 3 – 32 VDC | 24-330VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-480-3 Casing 2C/ 3S) | 3A | 3 – 32 VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-240-5 Casing 2C/3S) | 5A | 3 – 32 VDC | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-330-5 Casing 2C/3S) | 5A | 3 – 32 VDC | 24-330VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-480-5 Casing 2C/3S) | 5A | 3 – 32 VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-330-16 Casing 4) | 16A | 3 – 32 VDC | 24-330VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-480-16 Casing 4) | 16A | 3 – 32 VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDN-240-7) | 7A | 3 – 32 VDC | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDN-240-7K) | 7A | 3 – 32 VDC | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDN-480-8) | 8A | 3 – 32 VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-240-3.P5) | 3A | Not Available | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-480-3 P5) | 3A | Not Available | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-240-5.P5) | 5A | Not Available | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-480-5.P5) | 5A | Not Available | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-240-10.P5) | 10A | Not Available | 24-240VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDP-480-10.P5) | 10A | Not Available | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-60-3) | 3A | Not Available | 0-60VDC | 3-32 VDC(5/12/24/32) | 5-60 VDC | N/A | N/A | N/A | N/A | 3A | N/A | 6 VDC | 5 – 60 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 16 gms | – 30°C to + 125 °C | N/A |
(SDD-100-3) | 3A | Not Available | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 3A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-200-3) | 3A | Not Available | 0-200VDC | 3-32 VDC(5/12/24/32) | 5-200 VDC | N/A | N/A | N/A | N/A | 3A | N/A | 6 VDC | 5-200 VDC | N/A | N/A | 600 ms | 800 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 36 gms | – 30°C to + 125 °C | N/A |
(SDD-330-3) | 3A | Not Available | 0-330VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-60-5) | 5A | Not Available | 0-60VDC | 3-32 VDC(5/12/24/32) | 5-60 VDC | N/A | N/A | N/A | N/A | 5A | N/A | 6 VDC | 5 – 60 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 16 gms | – 30°C to + 125 °C | N/A |
(SDD-100-5) | 5A | Not Available | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 5A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-200-5) | 5A | Not Available | 0-200VDC | 3-32 VDC(5/12/24/32) | 5-200 VDC | N/A | N/A | N/A | N/A | 5A | N/A | 6 VDC | 5-200 VDC | N/A | N/A | 600 ms | 800 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 36 gms | – 30°C to + 125 °C | N/A |
(SDD-330-5) | 5A | Not Available | 0-330VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-100-10) | 10A | Not Available | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 10A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-200-10) | 10A | Not Available | 0-200VDC | 3-32 VDC(5/12/24/32) | 5-200 VDC | N/A | N/A | N/A | N/A | 10A | N/A | 6 VDC | 5-200 VDC | N/A | N/A | 600 ms | 800 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 36 gms | – 30°C to + 125 °C | N/A |
(SDD-330-10) | 10A | Not Available | 0-330VDC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(SDD-60-3.12.P5) | 3A | 3-32 VDC(5/12/24/48) | 0-60VDC | 3-32 VDC(5/12/24/32) | 5-60 VDC | N/A | N/A | N/A | N/A | 3A | N/A | 6 VDC | 5 – 60 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 16 gms | – 30°C to + 125 °C | N/A |
(SDD-100-3. 12.P5) | 3A | 3-32 VDC(5/12/24/48) | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 3A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-60-5.12.P5) | 5A | 3-32 VDC(5/12/24/48) | 0-60VDC | 3-32 VDC(5/12/24/32) | 5-60 VDC | N/A | N/A | N/A | N/A | 5A | N/A | 6 VDC | 5 – 60 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 16 gms | – 30°C to + 125 °C | N/A |
(SDD-100-5.24.P5) | 5A | 3-32 VDC(5/12/24/48) | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 5A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-60-10.48.P5) | 10A | 3-32 VDC(5/12/24/48) | 0-60VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 10A | N/A | 6 VDC | 5 – 60 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 16 gms | – 30°C to + 125 °C | N/A |
(SDD-100-10.24.P5) | 10A | 3-32 VDC(5/12/24/48) | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 10A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-100-10P5) | 10A | 3.5-32VDC | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 10A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-100-10) | 10A | 3.5-32VDC | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 10A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-100-3) | 10A | 3.5-32VDC | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 3A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SDD-100-3) | 10A | 3.5-32VDC | 0-100VDC | 3-32 VDC(5/12/24/32) | 5-100 VDC | N/A | N/A | N/A | N/A | 3A | N/A | 6 VDC | 5-100 VDC | N/A | N/A | 600 ms | 500 ms | N/A | N/A | N/A | N/A | Min. 2500 VACrms | 20 gms | – 30°C to + 125 °C | N/A |
(SR3PD-4-10) | 10A | 15-32VDC | 24-480VAC | 24 VDC | 48- 600VAC | N/A | 15 VDC | 1 VDC | N/A | 10 A | 100 | 1.6 VAC rms | 100 to 480 VAC | N/A | < 3 mA rms | N/A | N/A | N/A | 1000 V/μs | N/A | 47 ~ 63 Hz | N/A | 125 gms | – 40 °C to 100 °C | N/A |
(SR3PD-4-25) | 25A | 15-32VDC | 24-480VAC | 24 VDC | 48- 600VAC | N/A | 15 VDC | 1 VDC | N/A | 25A | 250 | 1.6 VAC rms | 100 to 480 VAC | N/A | < 3 mA rms | N/A | N/A | N/A | 1000 V/μs | N/A | 47 ~ 63 Hz | N/A | 125 gms | – 40 °C to 100 °C | N/A |
(SR3PD-4-40) | 40A | 15-32VDC | 24-480VAC | 24 VDC | 48- 600VAC | N/A | 15 VDC | 1 VDC | N/A | 40A | 400 | 1.6 VAC rms | 100 to 480 VAC | N/A | < 3 mA rms | N/A | N/A | N/A | 1000 V/μs | N/A | 47 ~ 63 Hz | N/A | 125 gms | – 40 °C to 100 °C | N/A |
(SR3PD-4-50) | 50A | 15-32VDC | 24-480VAC | 24 VDC | 48- 600VAC | N/A | 15 VDC | 1 VDC | N/A | 50A | 550 | 1.6 VAC rms | 100 to 480 VAC | N/A | < 3 mA rms | N/A | N/A | N/A | 1000 V/μs | N/A | 47 ~ 63 Hz | N/A | 125 gms | – 40 °C to 100 °C | N/A |
(SR3PD-4-75) | 75A | 15-32VDC | 24-480VAC | 24 VDC | 48- 600VAC | N/A | 15 VDC | 1 VDC | N/A | 75A | 1000 | 1.6 VAC rms | 100 to 480 VAC | N/A | < 3 mA rms | N/A | N/A | N/A | 1000 V/μs | N/A | 47 ~ 63 Hz | N/A | 125 gms | – 40 °C to 100 °C | N/A |
(S3-480-D-50AA-16.3) | 50A | 4-20mA | 24-480VAC | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 50A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 4750 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-75AA-16.3) | 75A | 4-20mA | 24-480VAC | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 75A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 14450 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-90AA-16.3) | 90A | 4-20mA | 24-480VAC | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 90A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 19100 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-110AA-16.3) | 110A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-125AA-16.3) | 125A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-150AA-16.3) | 150A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-175AA-16.3) | 175A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-205AA-16.3) | 205A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-50AA-16.6) | 50A | 4-20mA | 24-480VAC | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 50A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 4750 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-75AA-16.6) | 75A | 4-20mA | 24-480VAC | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 75A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 14450 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-90AA-16.6) | 90A | 4-20mA | 24-480VAC | 4-20mA | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 90A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 19100 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-110AA-16.6) | 110A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-125AA-16.6) | 125A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-150AA-16.6) | 150A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-175AA-16.6) | 175A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-205AA-16.6) | 205A | 4-20mA | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-50BB-16.3) | 50A | 0-10VDC | 24-480VAC | 0-10VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 50A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 4750 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-75BB-16.3) | 75A | 0-10VDC | 24-480VAC | 24-480 VAC rms | 0-10VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 75A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 14450 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C |
(S3-480-D-90BB-16.3) | 90A | 0-10VDC | 24-480VAC | 0-10VDC | 480 VAC rms | Less than equal to 50mA | N/A | N/A | N/A | 90A | N/A | N/A | 0 to 100% VAC25 – 480 VAC | 1200/1600 V Peak | <10 mA | N/A | N/A | N/A | 1000 V/ mS | 19100 A2 S | 50/60 Hz | N/A | N/A | -40 to 80°C | 100 °C |
(S3-480-D-110BB-16.3) | 110A | 0-10VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-125BB-16.3) | 125A | 0-10VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-150BB-16.3) | 150A | 0-10VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
(S3-480-D-175BB-16.3) | 175A | 0-10VDC | 24-480VAC | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
No. 412, Laxmi Plaza, Laxmi Industrial Estate, Link Road Andheri West, Mumbai - 400053, Maharashtra, India
+91 22 26325242, 9820143488
WhatsApp us
