AC Panel Mount Solid State Relay

AC Panel Mount Solid State Relays (SSRs) are electronic switching devices designed for controlling AC loads using low-voltage DC signals. These SSRs offer numerous advantages over traditional electromechanical relays, such as faster switching speeds, extended lifespan, and enhanced reliability. They find wide application in industries like industrial automation, HVAC, lighting control, and power distribution. The AC Panel Mount SSRs are known for their efficient and precise control of AC loads, providing a reliable solution for various industrial requirements.

The provided table offers a comprehensive overview of the specifications for different models of AC Panel Mount SSRs. It contains essential information such as the input voltage, output voltage, control voltage, control current range, pick-up voltage, turn-on and turn-off times, drop-out voltage, input resistance, surge current, voltage range, overvoltage rating, off-state leakage current, holding current, and more. This data is crucial for selecting the appropriate SSR model based on specific application requirements. It provides a quick reference for users to compare and identify the SSR that best suits their requirements.

Single Phase AC Panel Mount Solid State Relay

Dual AC Panel Mount Solid State Relay

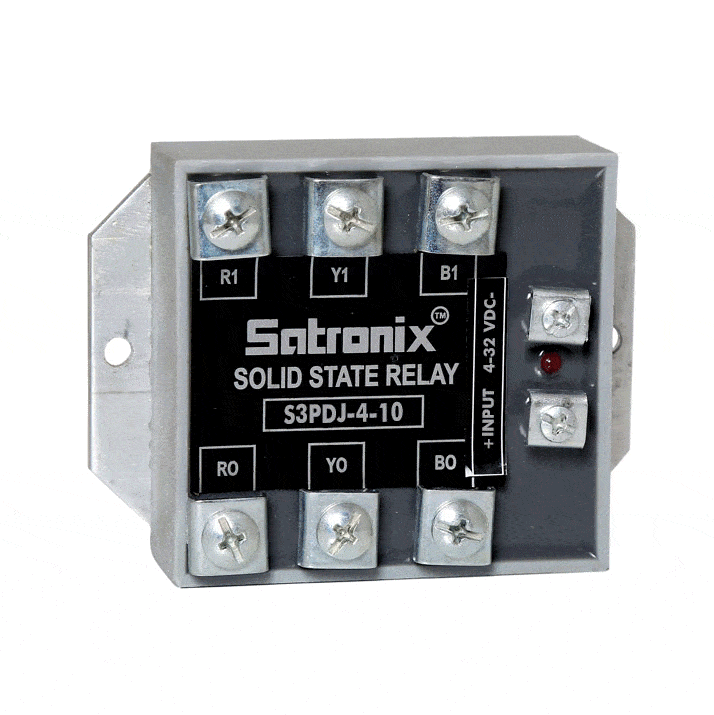

Three Phase AC Panel Mount Solid State Relay

Single Phase DC Panel Mount Solid State Relay

Satronix is a renowned manufacturer and supplier of Panel Mount Solid State Relays in India. Established in 1985, the company has amassed decades of experience in the industry, earning a strong reputation for producing high-quality SSRs that meet international standards. Satronix offers a comprehensive range of Panel Mount SSRs with varying current ratings and voltage capabilities to cater to the specific demands of industrial applications. Our SSRs are widely appreciated for their superior performance, durability, and precise control. With a strong commitment to innovation and customer satisfaction, Satronix has become a trusted choice for businesses across India and beyond.

These headings can help you choose SSRs based on their key attributes

Model	A Rating	Input	Output	Control Voltage	Control Current Range	Pick-up Voltage	Turn-on (max)	Turn-off (max)	Drop Out Voltage	Input Resistance	Current Range with proper heat sink(IT)	Surge Current non-repetitive t = 10msecs (ITEMS)	Voltage Drop @ Current (VTM)	Voltage Range (VRMS)	Over Voltage Rating (PIV) Transient Peak	Off-state leakage current @ voltage – (IDRM)	Holding current (IH)	Dv/Dt @Voltage (out)	I2T Fusing I2t (10 ms) (Value In Square)	Frequency Range	Dielectric Strength	Galvanic Separation (Input to Output to Base)	Weight	Storage Temp.	Junction Temperature
(SJDA-330-10)	10A	Input 3-32VDC	Output 24-330VAC	3 - 32 VDC	<10 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	10 A	120 A	1.5 VA CMS	25-330 VAC rms	800/1200 V Peak	10 mA	50 mA	400 V/ μs	78 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-480-10)	10A	Input 3-32VDC	Output 24-480VAC	3 - 32 VDC	<10 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	10A	120 A	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	50 mA	400 V/ μs	78 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-330-16)	16A	Input 3-32VDC	Output 24-330VAC	3 - 32 VDC	<10 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	16A	160A	1.5 VA CMS	25-330VAC	800/1200 V Peak	10 mA	70 mA	400 V/ μs	144 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-480-16)	16A	Input 3-32VDC	Output 24-480VAC	3 - 32 VDC	<10 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	16A	160A	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	70 mA	400 V/ μs	144 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-480-25)	25A	Input 3-32VDC	Output 24-480VAC	3 - 32 VDC	<10 mA	3 VDC	10 ms	N/A	1 VDC	Current regulator	25A	260A	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	120 mA	400 V/ μs	340 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-330-25)	25A	Input 3-32VDC	Output 24-330VAC	3 - 32 VDC	<10 mA	3 VDC	10 ms	N/A	1 VDC	Current regulator	40A	260A	1.5 VA CMS	25-330VAC	800/1200 V Peak	10 mA	120 mA	400 V/ μs	340 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-330-40)	40A	Input 3-32VDC	Output 24-330VAC	3 - 32 VDC	<10 mA	180 VAC	10 ms	10 ms	1 VDC	Current regulator	40A	300A	1.5 VA CMS	25-330VAC	800/1200 V Peak	10 mA	250 mA	400 V/ μs	800 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-480-40)	40A	Input 3-32VDC	Output 24-480VAC	3 - 32 VDC	<10 mA	180 VAC	10 ms	10 ms	1 VDC	Current regulator	40A	300A	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	250 mA	400 V/ μs	800 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-330-50)	50A	Input 3-32VDC	Output 24-330VAC	3 - 32 VDC	<10 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	50A	260A	1.5 VA CMS	25-330VAC	800/1200 V Peak	10 mA	120 mA	400 V/ μs	340 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-480-50)	50A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	50A	520 A	1. VACrms	25 – 480 VACrms (1600 Vpk)	800/1200 V Peak	10 mA	250 mA	1000 V/ µs	1350 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-480-60)	60A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	60A	950 A	1 VAC rms	25 – 480 VACrms (1600 Vpk)	800/1200 V Peak	10 mA	250 mA	1000 V/ µs	4550 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-660-60)	60A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	50A	520 A	1. VACrms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	1350 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-480-75)	75A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	75A	1000 A	1 VAC rms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/µs	5000 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-660-75)	75A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	75A	1000 A	1 VAC rms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250 mA	1000 V/µs	5000 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-480-90)	90A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	90A	1250 A	1 VAC rms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	6000 A²	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-660-90)	90A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	90A	1250 A	1 VAC rms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	6000 A²	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-480-110)	110A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	110A	1430 A	1..2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	6600 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-660-110)	110A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	110A	1430 A	1..2 VACrms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	6600 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-480-125)	125A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	125A	1500 A	1.2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	11200 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-660-125)	125A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	125A	1500 A	1.2 VACrms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	11200 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-480-150)	150A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	150A	1650 A	1.2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250mA	1000 V/ µs	12500 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-660-150)	150A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	150A	1650 A	1.2 VACrms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250mA	1000 V/ µs	12500 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SJDA-480-175)	175A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	175A	1700 A	1. 2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250mA	1000 V/ µs	14500 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-660-175)	175A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	175A	1700 A	1. 2 VACrms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250mA	1000 V/ µs	14500 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-480-205)	205A	Input 3-32VDC	Output 24-480VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	205A	2250 A	1.2VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250mA	1000 V/ µs	25300 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SJDA-660-205)	205A	Input 3-32VDC	Output 24-660VAC	4 – 32 VDC	<=25 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	205A	2250 A	1.2VACrms	48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250mA	1000 V/ µs	25300A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-330-10)	10A	Input 90-280VAC	Output 24-330VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	10 A	120 A	1.5 VA CMS	25-330 VAC	800/1200 V Peak	10 mA	50 mA	400 V/ μs	78 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-480-10)	10A	Input 90-280VAC	Output 24-480VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	10 A	120 A	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	50 mA	400 V/ μs	78 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-330-16)	16A	Input 90-280VAC	Output 24-330VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	16 A	160 A	1.5 VA CMS	25-330 VAC	800/1200 V Peak	10 mA	70 mA	400 V/ μs	144 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C

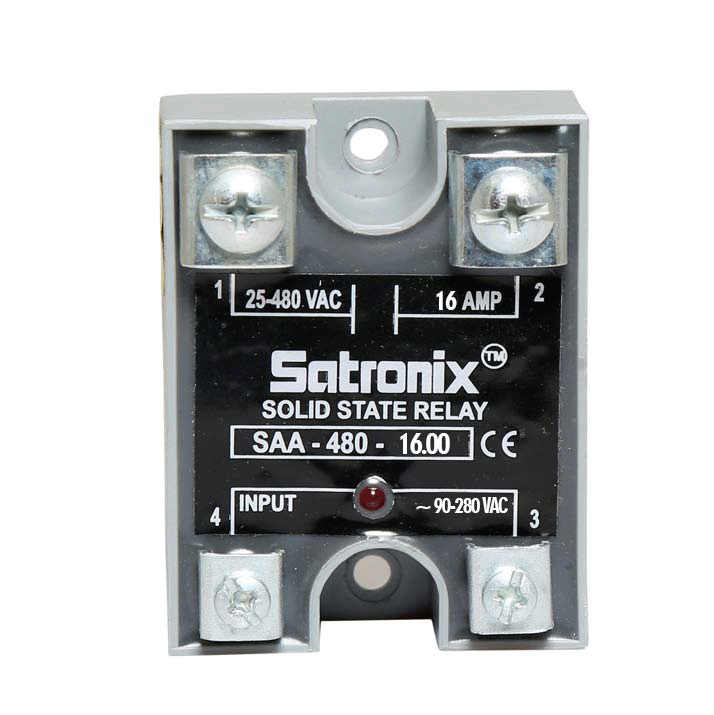

(SAA-480-16)	16A	Input 90-280VAC	Output 24-480VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	16 A	160 A	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	70 mA	400 V/ μs	144 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-330-25)	25A	Input 90-280VAC	Output 24-330VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	25A	260	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	120 mA	400 V/ μs	340 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-480-25)	25A	Input 90-280VAC	Output 24-480VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	25A	260	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	120 mA	400 V/ μs	340 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-330-40)	40A	Input 90-280VAC	Output 24-330VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	40A	300A	1.5 VA CMS	25-330 VAC	800/1200 V Peak	10 mA	250 mA	400 V/ μs	800 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-480-40)	40A	Input 90-280VAC	Output 24-480VAC	80 - 280 VAC	9 - 18 mA	180 VAC	20ms	30ms	45 VAC	Current regulator	40A	300A	1.5 VA CMS	25-480 VAC rms	800/1200 V Peak	10 mA	250 mA	400 V/ μs	800 A²S	47 – 70 Hz	2500 VAC – effective	4000 VAC	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAA-480-50)	50A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	50A	520 A	1. VACrms	25 – 480 VACrms (1600 Vpk)	800/1200 V Peak	10 mA	250 mA	1000 V/ µs	1350 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SAAC-660-50)	50A	Input 90-280VAC	Output 24-660VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	50 A	550 A	1.6 VAC	25-660VAC rms	1600/1800 V peak	10 mA		1000 V/ ms	3000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAA-480-60)	60A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	60A	950 A	1 VAC rms	25 – 480 VACrms (1600 Vpk) / 48 – 660 VAC rms (1800 Vpk)	N/A	10 mA	250	1000 V/ µs	4550 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SAAC-660-60)	60A	Input 90-280VAC	Output 24-660VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SAA-480-75)	75A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	75A	1000 A	1 VAC rms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/µs	5000 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SAAC-660-75)	75A	Input 90-280VAC	Output 24-660VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	75A	1150 A	1.6 VAC	25-660VAC rms	1600/1800 V peak	10 mA	N/A	1000 V/ ms	5000A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAA-480-90)	90A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	90A	1250 A	1 VAC rms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	6000 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SAAC-660-90)	90A	Input 90-280VAC	Output 24-660VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	90 A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000 V/ ms	7200A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAA-480-110)	110A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	110A	1430 A	1..2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	6600 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SAAC-660-110)	110A	Input 90-280VAC	Output 24-660VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SAA-480-125)	125A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	125A	1500 A	1.2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250 mA	1000 V/ µs	11200 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SAAC-660-125)	125A	Input 90-280VAC	Output 24-660VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	125A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000 V/ µs	7500 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAA-480-150)	150A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	150A	1650 A	1.2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250mA	1000 V/ µs	12500 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 1 25 g	– 40 °C to 100 °C	100 °C
(SAAC-660-150)	150A	Input 90-280VAC	Output 24-660VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	150A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	8000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAA-480-175)	175A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	175A	1700 A	1. 2 VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250mA	1000 V/ µs	14500 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAAC-660-175)	175A	Input 90-280VAC	Output 24-660VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	175A	1500A	1.6VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	15000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAA-480-205)	205A	Input 90-280VAC	Output 24-480VAC	90 – 280 VAC /17-80VAC	<10 mA	90 VAC	20ms	30ms	10 VAC	Current regulator	205A	2250 A	1.2VACrms	25 – 480 VACrms (1600 Vpk)	N/A	10 mA	250mA	1000 V/ µs	25300 A²S	47 – 70 Hz	2500 to 4000 VACrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SAAC-660-205)	205A	Input 90-280VAC	Output 24-660VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	205A	2250	1.6VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	25000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(S1–110–D-25AA–12)	25A	4-20 mA	48-140 VAC rms	N/A	48-140 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1600	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–240–D-25AA–12)	25A	4-20 mA	180-330 VAC rms	N/A	180-330 VAC rms	N/A	N/A	N/A	N/A	25 A	260 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	450 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–480–D-25AA–12)	25A	4-20 mA	280-480VAC rms	N/A	280-480VAC rms	N/A	N/A	N/A	N/A	25 A	260 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	450 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–600–D-25AA–12)	25A	4-20 mA	330 - 600VAC rms	N/A	330 - 600VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	1600	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-25AB–12)	25A	4-20 mA /0–10 VDC	48- 140 VAC rms	4-20 mA /0–10 VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-25AC–12)	25A	4-20mA/0-5 VDC	48- 140 VAC rms	4-20mA/0-5 VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-25AB–12)	25A	4-20mA/0–10 VDC	180 - 330 VAC rms	4-20mA/0–10 VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-25AC–12)	25A	4-20mA/0-5VDC	180 - 330 VAC rms	4-20mA/0-5VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-25AB–12)	25A	4-20mA/0–10 VDC	280 – 480VAC rms	4-20mA/0–10 VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	48-480VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-25AC–12)	25A	4-20mA/ 0–5 VDC	280 – 480VAC rms	4-20mA/ 0–5 VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	48-480VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-25AB–12)	25A	4-20mA/0–10 VDC	330 – 660VAC rms	4-20mA/0–10 VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	48-660VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-25AC–12)	25A	4-20mA/0–5 VDC	330 – 660VAC rms	4-20mA/0–5 VDC	0 - 10VDC	0.7 VDC	N/A	N/A	0.2 VDC	N/A	25 A	260 A	1.6	48-660VAC	1600	<5 mA	75 mA	1000 V/ms	450 A²S	50/60 Hz	4000 Vrms	N/A	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–110–D-50AA–12)	50A	4-20 mA	48-140 VAC rms	4-20 mA	48-140 VAC rms	N/A	N/A	N/A	N/A	50A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–240–D-50AA–12)	50A	4-20 mA	180-330 VAC rms	4-20 mA	180-330 VAC rms	30 mA	N/A	<10 VDC	N/A	50A	625 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–480–D-50AA–12)	50A	4-20 mA	280-480VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	50A	625 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–600–D-50AA–12)	50A	4-20 mA	330 - 600VAC rms	4-20 mA	330 - 600VAC rms	N/A	N/A	N/A	N/A	50A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-50AB–12)	50A	4-20 mA /0–10 VDC	48- 140 VAC rms	4-20 mA /0–10 VDC	48 - 140 VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-50AC–12)	50A	4-20mA/0-5 VDC	48- 140 VAC rms	4-20 mA /0–10 VDC	48 - 140 VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-50AB–12)	50A	4-20mA/0–10 VDC	180 - 330 VAC rms	4-20mA/0–10 VDC	180 - 330 VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-50AC–12)	50A	4-20mA/0-5VDC	180 - 330 VAC rms	4-20mA/0-5VDC	180 - 330 VAC rms	N/A	N/A	N/A	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-50AB–12)	50A	4-20mA/0–10 VDC	280 – 480VAC rms	4-20mA/0–10 VDC	280 – 480VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-50AC–12)	50A	4-20mA/ 0–5 VDC	280 – 480VAC rms	4-20mA/ 0–5 VDC	280 – 480VAC rms	N/A	N/A	N/A	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-50AB–12)	50A	4-20mA/0–10 VDC	330 – 660VAC rms	4-20mA/0–10 VDC	330 – 600VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-50AC–12)	50A	4-20mA/0–5 VDC	330 – 660VAC rms	4-20mA/0–5 VDC	330 – 600VAC rms	N/A	N/A	N/A	N/A	50A	625 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	1680 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–110–D-75AA–12)	75A	4-20 mA	48-140 VAC rms	4-20 mA	48-140 VAC rms	N/A	N/A	N/A	N/A	75A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–240–D-75AA–12)	75A	4-20 mA	180-330 VAC rms	4-20 mA	180-330 VAC rms	30 mA	N/A	<10 VDC	N/A	75A	1150 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	6600 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–480–D-75AA–12)	75A	4-20 mA	280-480VAC rms	4-20 mA	280-480VAC rms	N/A	N/A	N/A	N/A	75A	1150 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	6600 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–600–D-75AA–12)	75A	4-20 mA	330 - 600VAC rms	4-20 mA	330 - 600VAC rms	N/A	N/A	N/A	N/A	75A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-75AB–12)	75A	4-20 mA /0–10 VDC	48- 140 VAC rms	4-20 mA /0–10 VDC	48 - 140 VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	75A	N/A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100mA	1000 V/ms	7800 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-75AC–12)	75A	4-20mA/0-5 VDC	48- 140 VAC rms	4-20mA/0-5 VDC	48 - 140 VAC rms	N/A	N/A	N/A	N/A	75A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-75AB–12)	75A	4-20mA/0–10 VDC	180 - 330 VAC rms	4-20mA/0–10 VDC	180 - 330 VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	75A	N/A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100mA	1000 V/ms	7800 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-75AC–12)	75A	4-20mA/0-5VDC	180 - 330 VAC rms	4-20mA/0-5VDC	180 - 330 VAC rms	N/A	N/A	N/A	N/A	75A	N/A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100mA	1000 V/ms	7800 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-75AB–12)	75A	4-20mA/0–10 VDC	280 – 480VAC rms	4-20mA/0–10 VDC	280 – 480VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	75A	N/A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100mA	1000 V/ms	7800 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-75AC–12)	75A	4-20mA/ 0–5 VDC	280 – 480VAC rms	4-20mA/ 0–5 VDC	280 – 480VAC rms	N/A	N/A	N/A	N/A	75A	N/A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100mA	1000 V/ms	7800 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-75AB–12)	75A	4-20mA/0–10 VDC	330 – 660VAC rms	4-20mA/0–10 VDC	330 – 600VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	75A	N/A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100mA	1000 V/ms	7800 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-75AC–12)	75A	4-20mA/0–5 VDC	330 – 660VAC rms	4-20mA/0–5 VDC	330 – 600VAC rms	N/A	N/A	N/A	N/A	75A	N/A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100mA	1000 V/ms	7800 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–110–D-90AA–12)	90A	4-20 mA	48-140 VAC rms	4-20 mA	48-140 VAC rms	N/A	N/A	N/A	N/A	90A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–240–D-90AA–12)	90A	4-20 mA	180-330 VAC rms	4-20 mA	180-330 VAC rms	30 mA	N/A	<10 VDC	N/A	90A	1500 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–480–D-90AA–12)	90A	4-20 mA	280-480VAC rms	4-20 mA	280-480VAC rms	N/A	N/A	N/A	N/A	90A	1500 A	1.6	48-140/ 180 – 330 / 280 – 480 VAC rmsOptional : 330 – 600 VAC	1600	<10 mA	N/A	N/A	250 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–600–D-90AA–12)	90A	4-20 mA	330 - 600VAC rms	4-20 mA	330 - 600VAC rms	N/A	N/A	N/A	N/A	90A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-90AB–12)	90A	4-20 mA /0–10 VDC	48- 140 VAC rms	4-20 mA /0–10 VDC	48 - 140 VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-110–D-90AC–12)	90A	4-20mA/0-5 VDC	48- 140 VAC rms	4-20mA/0-5 VDC	48 - 140 VAC rms	N/A	N/A	N/A	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-90AB–12)	90A	4-20mA/0–10 VDC	180 - 330 VAC rms	4-20mA/0–10 VDC	180 - 330 VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-240–D-90AC–12)	90A	4-20mA/0-5VDC	180 - 330 VAC rms	4-20mA/0-5VDC	180 - 330 VAC rms	N/A	N/A	N/A	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-90AB–12)	90A	4-20mA/0–10 VDC	280 – 480VAC rms	4-20mA/0–10 VDC	280 – 480VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-480–D-90AC–12)	90A	4-20mA/ 0–5 VDC	280 – 480VAC rms	4-20mA/ 0–5 VDC	280 – 480VAC rms	N/A	N/A	N/A	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-90AB–12)	90A	4-20mA/0–10 VDC	330 – 660VAC rms	4-20mA/0–10 VDC	330 – 600VAC rms	0 - 10VDC	0.7 VDC	0.2 VDC	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(S1–PC-660–D-90AC–12)	90A	4-20mA/0–5 VDC	330 – 660VAC rms	4-20mA/0–5 VDC	330 – 600VAC rms	N/A	N/A	N/A	N/A	90A	1500 A	1.85	90-280VAC/ 24-330VAC / 48-480VAC / 48-660VAC	1600	<5 mA	N/A	N/A	100 mA	1000 V/ms	11000 A2S	50/60 Hz	4000 Vrms	Approx. 100 g	– 40 °C to 100 °C	100 °C
(SDAC-660-50)	50A	3-32 VDC	24-660 VAC	3-32 VDC	10 -30 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	50 A	550 A	1.6 VAC	25-660VAC rms	1600/1800 V peak	10 mA		1000 V/ ms	3000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SDAC-660-75)	75A	3-32 VDC	24-660 VAC	3-32 VDC	10 -30 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	75A	1150 A	1.6 VAC	25-660VAC rms	1600/1800 V peak	10 mA	N/A	1000 V/ ms	5000A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SDAC-660-90)	90A	3-32 VDC	24-660 VAC	3-32 VDC	10 -30 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	90 A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000 V/ ms	7200A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SDAC-660-125)	125A	3-32 VDC	48-660 VAC	3-32 VDC	10 -30 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	125A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000 V/ µs	7500 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SDAC-660-150)	150A	3-32 VDC	48-660 VAC	3-32 VDC	10 -30 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	150A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	8000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SDAC-660-175)	175A	3-32 VDC	48-660 VAC	3-32 VDC	10 -30 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	175A	1500A	1.6VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	15000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SDAC-660-205)	205A	3-32 VDC	48-660 VAC	3-32 VDC	10 -30 mA	3 VDC	10 ms	10 ms	1 VDC	Current regulator	205A	2250	1.6VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	25000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAAC-660-50)	50A	Input 90-280VAC	48-660 VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	50 A	550 A	1.6 VAC	25-660VAC rms	1600/1800 V peak	10 mA	N/A	1000 V/ ms	3000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAAC-660-75)	75A	Input 90-280VAC	48-660 VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	75A	1150 A	1.6 VAC	25-660VAC rms	1600/1800 V peak	10 mA	N/A	1000 V/ ms	5000A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAAC-660-90)	90A	Input 90-280VAC	48-660 VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	90 A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000 V/ ms	7200A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAAC-660-125)	125A	Input 90-280VAC	48-660 VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	125A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000 V/ µs	7500 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAAC-660-150)	150A	Input 90-280VAC	48-660 VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	150A	1350 A	1.6 VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	8000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAAC-660-175)	175A	Input 90-280VAC	48-660 VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	175A	1500A	1.6VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	15000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(SAAC-660-205)	205A	Input 90-280VAC	48-660 VAC	160 – 280 VAC	4-18 mA	160 VAC	10 ms	10 ms	45 VAC	Current regulator	205A	2250	1.6VAC	25-660VAC rms	1800 V peak	10 mA	N/A	1000V/ ms	25000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 106 g	– 40 °C to 125 °C	100 0 C
(S2DA-280-10D.1)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10D.2)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10D.3)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10D.4)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10D.5)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10E.1)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10E.2)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10E.3)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10E.4)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-10E.5)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10D.1)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10D.2)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10D.3)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10D.4)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10D.5)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10E.1)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10E.2)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10E.3)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10E.4)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-10E.5)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16D.1)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16D.2)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16D.3)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16D.4)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16D.5)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16E.1)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16E.2)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16E.3)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16E.4)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-16E.5)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16D.1)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16D.2)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16D.3)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16D.4)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16D.5)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16E.1)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16E.2)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16E.3)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16E.4)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-16E.5)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25D.1)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25D.2)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25D.3)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25D.4)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25D.5)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25E.1)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25E.2)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25E.3)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25E.4)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-25E.5)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25D.1)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25D.2)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25D.3)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25D.4)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25D.5)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25E.1)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25E.2)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25E.3)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25E.4)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-25E.5)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40D.1)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40D.2)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40D.3)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40D.4)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40D.5)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40E.1)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40E.2)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40E.3)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40E.4)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-40E.5)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40D.1)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40D.2)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40D.3)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40D.4)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40D.5)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40E.1)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40E.2)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40E.3)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40E.4)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-40E.5)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50D.1)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50D.2)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50D.3)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50D.4)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50D.5)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50E.1)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50E.2)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50E.3)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50E.4)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-280-50E.5)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50D.1)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50D.2)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50D.3)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50D.4)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50D.5)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50E.1)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50E.2)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50E.3)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50E.4)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2DA-480-50E.5)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10D.1)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10D.2)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10D.3)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10D.4)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10D.5)	10A	4-15VDC	12-280 VAC rms	4– 15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10E.1)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10E.2)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10E.3)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10E.4)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-10E.5)	10A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10D.1)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10D.2)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10D.3)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10D.4)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10D.5)	10A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10E.1)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10E.2)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10E.3)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10E.4)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-10E.5)	10A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	10 A	100 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	200 V/ ms	50 A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16D.1)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16D.2)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16D.3)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16D.4)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16D.5)	16A	4-15VDC	12-280 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16E.1)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16E.2)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16E.3)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16E.4)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-16E.5)	16A	15-32 VDC	12-280 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16D.1)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16D.2)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16D.3)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16D.4)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16D.5)	16A	4-15 VDC	24-480 VAC rms	4-15 VDC	24-480 VAC rms	N/A	4 VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16E.1)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16E.2)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16E.3)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16E.4)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-16E.5)	16A	15-32 VDC	24-480 VAC rms	15-32 VDC	12-280 VAC rms	N/A	15VDC	1 VDC	N/A	16A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	47 – 63 Hz	2500 VAC rms – effective 4000 VAC rms – optional	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25D.1)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25D.2)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25D.3)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25D.4)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25D.5)	25A	4-15VDC	12-280 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25E.1)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25E.2)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25E.3)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25E.4)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-25E.5)	25A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25D.1)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25D.2)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25D.3)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25D.4)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25D.5)	25A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25E.1)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25E.2)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25E.3)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25E.4)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-25E.5)	25A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	25A	250 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	300 V/ ms	1250A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40D.1)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40D.2)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40D.3)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40D.4)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40D.5)	40A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40E.1)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40E.2)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40E.3)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40E.4)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-40E.5)	40A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-280 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40D.1)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40D.2)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40D.3)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40D.4)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40D.5)	40A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40E.1)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40E.2)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40E.3)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40E.4)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-40E.5)	40A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	40A	500 A	1.6 VAC	24-480 VAC	600/800 V peak	10 mA rms	N/A	500 V/ ms	1780A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50D.1)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50D.2)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50D.3)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50D.4)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50D.5)	50A	4-15VDC	12-280 VAC rms	4-15VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50E.1)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50E.2)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50E.3)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50E.4)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-280-50E.5)	50A	15-32 VDC	12-280 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-280 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50D.1)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50D.2)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50D.3)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50D.4)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50D.5)	50A	4-15 VDC	24-480 VAC rms	4-15 VDC	N/A	4 VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50E.1)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50E.2)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50E.3)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50E.4)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S2KDA-480-50E.5)	50A	15-32 VDC	24-480 VAC rms	15-32 VDC	N/A	15VDC	10 ms	10 ms	1 VDC	N/A	50A	750 A	1.6 VAC	24-480 VAC	1200/1600 V peak	10 mA rms	N/A	1000V/ ms	2520A²S	47 – 63 Hz	2500 VAC rms – effective	4000 VAC rms	Approx. 100 g	– 40 °C to 100 °C / – 40°C to 80 °C	100 °C
(S3PDJ-4-10)	10A	4-32VDC	24-480 VAC rms	4 – 32 VDC	<=25 mA	4 VDC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	1 VDC	Current regulator	10 A	120 A126A	1.6 VACrms	25 – 480 VACrms / 48 – 660 VAC rms	N/A	<10 mA	50 mA	200 V/ µs	72 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PDJ-4-16)	16A	4-32VDC	24-480 VAC rms	4 – 32 VDC	<=25 mA	4 VDC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	1 VDC	Current regulator	16A	160 A168 A	1.6 VACrms	25 – 480 VACrms / 48 – 660 VAC rms	N/A	<10 mA	100mA	200 V/ µs	340 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PDJ-4-25)	25A	4-32VDC	24-480 VAC rms	4 – 32 VDC	<=25 mA	4 VDC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	1 VDC	Current regulator	25A	250 A260 A	1.6 VACrms	25 – 480 VACrms / 48 – 660 VAC rms	N/A	<10 mA	150mA	500 V/ µs	1000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PDJ-4-40)	40A	4-32VDC	24-480 VAC rms	4 – 32 VDC	<=25 mA	4 VDC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	1 VDC	Current regulator	40A	400 A420 A	1.85 VACrms	25 – 480 VACrms / 48 – 660 VAC rms	N/A	<10 mA	250mA	1000 V/ µs	1000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PDJ-4-50)	50A	4-32VDC	24-480 VAC rms	4 – 32 VDC	<=25 mA	4 VDC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	1 VDC	Current regulator	50A	597 A625 A	1.85 VACrms	25 – 480 VACrms / 48 – 660 VAC rms	N/A	<10 mA	250mA	1000 V/ µs	4000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PDJ-4-75)	75A	4-32VDC	24-480 VAC rms	4 – 32 VDC	<=25 mA	4 VDC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	1 VDC	Current regulator	75A	1150 A1185 A	2.0 VACrms	25 – 480 VACrms	N/A	<10 mA	400mA	1000 V/ µs	5000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PDJ-4-90)	90A	4-32VDC	24-480 VAC rms	4 – 32 VDC	<=25 mA	4 VDC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	1 VDC	Current regulator	90A	1150 A1185 A	2.0 VACrms	25 – 480 VACrms	N/A	<10 mA	400mA	1000 V/ µs	7200 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PDJ-4-110)	110A	4-32VDC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	110A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PDJ-4-125)	125A	4-32VDC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	125A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PDJ-4-150)	150A	4-32VDC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	150A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PDJ-4-175)	175A	4-32VDC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	175A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PDJ-4-205)	205A	4-32VDC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	205A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PA-4-10)	10A	80-280 VAC	24-480 VAC rms	90 – 280 VAC	<10 mA	90 VAC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	10 VAC	Current regulator	10 A	120 A126A	1.6 VACrms	25 – 480 VACrms	N/A	<10 mA	50 mA	200 V/ µs	72 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PA-4-16)	16A	80-280 VAC	24-480 VAC rms	90 – 280 VAC	<10 mA	90 VAC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	10 VAC	Current regulator	16A	160 A168 A	1.6 VACrms	25 – 480 VACrms	N/A	<10 mA	100mA	200 V/ µs	340 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PA-4-25)	25A	80-280 VAC	24-480 VAC rms	90 – 280 VAC	<10 mA	90 VAC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	10 VAC	Current regulator	25A	250 A260 A	1.6 VACrms	25 – 480 VACrms	N/A	<10 mA	150mA	500 V/ µs	1000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PA-4-40)	40A	80-280 VAC	24-480 VAC rms	90 – 280 VAC	<10 mA	90 VAC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	10 VAC	Current regulator	40A	400 A420 A	1.85 VACrms	25 – 480 VACrms	N/A	<10 mA	250mA	1000 V/ µs	1000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PA-4-50)	50A	80-280 VAC	24-480 VAC rms	90 – 280 VAC	<10 mA	90 VAC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	10 VAC	Current regulator	50A	597 A625 A	1.85 VACrms	25 – 480 VACrms	N/A	<10 mA	250mA	1000 V/ µs	4000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PA-4-75)	75A	80-280 VAC	24-480 VAC rms	90 – 280 VAC	<10 mA	90 VAC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	10 VAC	Current regulator	75A	1150 A1185 A	2.0 VACrms	25 – 480 VACrms	N/A	<10 mA	400mA	1000 V/ µs	5000 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PA-4-90)	90A	80-280 VAC	24-480 VAC rms	90 – 280 VAC	<10 mA	90 VAC	DC input models: 10 msecs AC input models: 20msecs	DC input models: 10 msecsAC input models: 30msecs	10 VAC	Current regulator	90A	1150 A1185 A	2.0 VACrms	25 – 480 VACrms	N/A	<10 mA	400mA	1000 V/ µs	7200 A²S	47 – 70 Hz	4000 Vrms	N/A	Approx. 300 g	– 40 °C to 100 °C	100 °C
(S3PA-4-110)	110A	80-280 VAC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	110A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PA-4-125)	125A	80-280 VAC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	125A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PA-4-150)	150A	80-280 VAC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	150A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PA-4-175)	175A	80-280 VAC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	175A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3PA-4-205)	205A	80-280 VAC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	205A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-50AA-16.3.B)	50A	4-20mA	24-480 VAC rms	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	50A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	4750 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-50BB-16.3.B)	50A	0-10VDC	24-480 VAC rms	0-10VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	50A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	4750 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-50CC-16.3.B)	50A	0-5VDC	24-480 VAC rms	0-5VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	50A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	4750 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-50DD-16.3.B)	50A	potentiometer	24-480 VAC rms	potentiometer	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	50A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	4750 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-75AA-16.3.B)	75A	4-20mA	24-480 VAC rms	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	75A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	14450 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-75BB-16.3.B)	75A	0-10VDC	24-480 VAC rms	0-10VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	75A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	14450 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-75CC-16.3.B)	75A	0-5VDC	24-480 VAC rms	0-5VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	75A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	14450 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-75DD16.3.B)	75A	potentiometer	24-480 VAC rms	potentiometer	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	75A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	14450 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-90AA-16.3.B)	90A	4-20mA	24-480 VAC rms	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	90A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	19100 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-90BB-16.3.B)	90A	0-10VDC	24-480 VAC rms	0-10VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	90A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	19100 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-90CC-16.3.B)	90A	0-5VDC	24-480 VAC rms	0-5VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	90A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	19100 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-90DD-16.3.B)	90A	potentiometer	24-480 VAC rms	potentiometer	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	90A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	19100 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(SDD-100-10)	10A	3.5 – 32 VDC	0-100VDC	3.5 – 32 VDC	5-100 VDC	N/A	N/A	N/A	Current regulator	10 A	N/A	2	5-100	N/A	0.1	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-200-10)	10A	3.5 – 32 VDC	0-200VDC	3.5 – 32 VDC	5-200 VDC	N/A	N/A	N/A	Current regulator	10 A	N/A	2	5-100	N/A	0.1	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-330-10)	10A	3.5 – 32 VDC	0-330VDC	3.5 – 32 VDC	5-330VDC	N/A	N/A	N/A	Current regulator	10 A	N/A	2	5-100	N/A	0.1	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-600-10)	10A	3.5 – 32 VDC	0-600VDC	3.5 – 32 VDC	5-600VDC	N/A	N/A	N/A	Current regulator	10 A	N/A	2	5-100	N/A	0.1	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-100-20)	20A	3.5 – 32 VDC	0-100VDC	3.5 – 32 VDC	5-100 VDC	N/A	N/A	N/A	Current regulator	20A	N/A	1.6	5-100	N/A	0.2	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-200-20)	20A	3.5 – 32 VDC	0-200VDC	3.5 – 32 VDC	5-200 VDC	N/A	N/A	N/A	Current regulator	20A	N/A	1.6	5-100	N/A	0.2	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-330-20)	20A	3.5 – 32 VDC	0-330VDC	3.5 – 32 VDC	5-330VDC	N/A	N/A	N/A	Current regulator	20A	N/A	1.6	5-100	N/A	0.2	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-600-20)	20A	3.5 – 32 VDC	0-600VDC	3.5 – 32 VDC	5-600VDC	N/A	N/A	N/A	Current regulator	20A	N/A	1.6	5-100	N/A	0.2	200 µsecs	300 µsecs	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-100-40)	40A	3.5 – 32 VDC	0-100VDC	3.5 – 32 VDC	5-100 VDC	N/A	N/A	N/A	Current regulator	20A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-200-40)	40A	3.5 – 32 VDC	0-200VDC	3.5 – 32 VDC	5-200 VDC	N/A	N/A	N/A	Current regulator	20A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-330-40)	40A	3.5 – 32 VDC	0-330VDC	3.5 – 32 VDC	5-330VDC	N/A	N/A	N/A	Current regulator	20A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-600-40)	40A	3.5 – 32 VDC	0-600VDC	3.5 – 32 VDC	5-600VDC	N/A	N/A	N/A	Current regulator	20A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Min. 2500 VACrms	N/A	N/A	N/A
(SDD-600-60)	60A	3.5 – 32 VDC	0-600VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-600-80)	80A	3.5 – 32 VDC	0-600VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-600-100)	100A	3.5 – 32 VDC	0-600VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-1000-10)	10A	3.5 – 32 VDC	0-1000VDC	3.5 – 32 VDC	5-1000VDC	N/A	N/A	N/A	N/A	10A	60 A	1.9 V	5 –1000 VDC	N/A	10 mA	600 ms	2600 ms	N/A	N/A	N/A	N/A	Min. 2500 VAC	100 g	-40 to 125°C	N/A
(SDD-1200-10)	10A	3.5 – 32 VDC	0-1200VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-1000-25)	25A	3.5 – 32 VDC	0-1000VDC	3.5 – 32 VDC	5-1000VDC	N/A	N/A	N/A	N/A	25A	80A	1.9 V	5 –1000 VDC	N/A	10 mA	600 ms	2600 ms	N/A	N/A	N/A	N/A	Min. 2500 VAC	100 g	-40 to 125°C	N/A
(SDD-1200-25)	25A	3.5 – 32 VDC	0-1200VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-1000-40)	40A	3.5 – 32 VDC	0-1000VDC	3.5 – 32 VDC	5-1000VDC	N/A	N/A	N/A	N/A	40A	130A	2 V	5 –1000 VDC	N/A	10 mA	600 ms	2600 ms	N/A	N/A	N/A	N/A	Min. 2500 VAC	100 g	-40 to 125°C	N/A
(SDD-1200-40)	40A	3.5 – 32 VDC	0-1200VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDSCP-480-25)	25A	5/ 12/ 24 VDC	24-480 VAC rms	5/ 12/ 24/ 32 VDC	48 – 530V AC rms	30 mA	5VDC	1 VDC	Current regulator	25A	500 A	1.8 VAC	48 – 530VAC rms	1600 V peak	10 mA	10 ms	10 ms	250 mA	1000V/ms	2250 A2s	50/60 Hz	N/A	Approx. 140 g	– 30°C to 80°C	100 °C
(SDSCP-480-50)	50A	5/ 12/ 24 VDC	24-480 VAC rms	5/ 12/ 24/ 32 VDC	48 – 530V AC rms	30 mA	5VDC	1 VDC	Current regulator	50A	520 A	1.8 VAC	48 – 530VAC rms	1600 V peak	10 mA	10 ms	10 ms	250 mA	1000V/ms	5000 A2s	50/60 Hz	N/A	Approx. 140 g	– 30°C to 80°C	100 °C
(SDSCP-480-75)	75A	5/ 12/ 24 VDC	24-480 VAC rms	5/ 12/ 24/ 32 VDC	48 – 530V AC rms	30 mA	5VDC	1 VDC	Current regulator	75A	1500 A	2.0 VAC	48 – 530VAC rms	1600 V peak	10 mA	10 ms	10 ms	250 mA	1000V/ms	6000 A2s	50/60 Hz	N/A	Approx. 140 g	– 30°C to 80°C	100 °C
(SDSCP-480-90)	90A	5/ 12/ 24 VDC	24-480 VAC rms	5/ 12/ 24/ 32 VDC	48 – 530V AC rms	30 mA	5VDC	1 VDC	Current regulator	90A	2250 A	2.0 VAC	48 – 530VAC rms	1600 V peak	10 mA	10 ms	10 ms	250 mA	1000V/ms	11200 A2s	50/60 Hz	N/A	Approx. 140 g	– 30°C to 80°C	100 °C
(SDSCP-480-110)	110A	5/ 12/ 24 VDC	24-480 VAC rms	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-10 I/P 250 K)	10A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-10 I/P 470 K)	10A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-10 I/P 250 K)	10A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-10 I/P 470 K)	10A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-16 I/P 250 K)	16A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-16 I/P 470 K)	16A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-16 I/P 250 K)	16A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-16 I/P 470 K)	16A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-25 I/P 250 K)	25A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-25 I/P 470 K)	25A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-25 I/P 250 K)	25A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-25 I/P 470 K)	25A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-40 I/P 250 K)	40A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-40 I/P 470 K)	40A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-40 I/P 250 K)	40A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-40 I/P 470 K)	40A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-50 I/P 250 K)	50A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-50 I/P 470 K)	50A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-50 I/P 250 K)	50A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-50 I/P 470 K)	50A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-60 I/P 250 K)	60A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-60 I/P 470 K)	60A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-60 I/P 250 K)	60A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-60 I/P 470 K)	60A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-90 I/P 250 K)	90A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-90 I/P 470 K)	90A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-90 I/P 250 K)	90A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-90 I/P 470 K)	90A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-100 I/P 250 K)	100A	I/P 250 K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-240-100 I/P 470 K)	100A	I/P 470K Pot	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-100 I/P 250 K)	100A	I/P 250 K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(PSR-480-100 I/P 470 K)	100A	I/P 470K Pot	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-240-3 Casing 2C / 3S)	3A	3 – 32 VDC	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-330-3 Casing 2C / 3S)	3A	3 – 32 VDC	24-330VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-480-3 Casing 2C/ 3S)	3A	3 – 32 VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-240-5 Casing 2C/3S)	5A	3 – 32 VDC	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-330-5 Casing 2C/3S)	5A	3 – 32 VDC	24-330VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-480-5 Casing 2C/3S)	5A	3 – 32 VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-330-16 Casing 4)	16A	3 – 32 VDC	24-330VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-480-16 Casing 4)	16A	3 – 32 VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDN-240-7)	7A	3 – 32 VDC	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDN-240-7K)	7A	3 – 32 VDC	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDN-480-8)	8A	3 – 32 VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-240-3.P5)	3A	Not Available	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-480-3 P5)	3A	Not Available	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-240-5.P5)	5A	Not Available	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-480-5.P5)	5A	Not Available	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-240-10.P5)	10A	Not Available	24-240VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDP-480-10.P5)	10A	Not Available	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-60-3)	3A	Not Available	0-60VDC	3-32 VDC(5/12/24/32)	5-60 VDC	N/A	N/A	N/A	N/A	3A	N/A	6 VDC	5 – 60 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	16 gms	– 30°C to + 125 °C	N/A
(SDD-100-3)	3A	Not Available	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	3A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-200-3)	3A	Not Available	0-200VDC	3-32 VDC(5/12/24/32)	5-200 VDC	N/A	N/A	N/A	N/A	3A	N/A	6 VDC	5-200 VDC	N/A	N/A	600 ms	800 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	36 gms	– 30°C to + 125 °C	N/A
(SDD-330-3)	3A	Not Available	0-330VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-60-5)	5A	Not Available	0-60VDC	3-32 VDC(5/12/24/32)	5-60 VDC	N/A	N/A	N/A	N/A	5A	N/A	6 VDC	5 – 60 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	16 gms	– 30°C to + 125 °C	N/A
(SDD-100-5)	5A	Not Available	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	5A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-200-5)	5A	Not Available	0-200VDC	3-32 VDC(5/12/24/32)	5-200 VDC	N/A	N/A	N/A	N/A	5A	N/A	6 VDC	5-200 VDC	N/A	N/A	600 ms	800 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	36 gms	– 30°C to + 125 °C	N/A
(SDD-330-5)	5A	Not Available	0-330VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-100-10)	10A	Not Available	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	10A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-200-10)	10A	Not Available	0-200VDC	3-32 VDC(5/12/24/32)	5-200 VDC	N/A	N/A	N/A	N/A	10A	N/A	6 VDC	5-200 VDC	N/A	N/A	600 ms	800 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	36 gms	– 30°C to + 125 °C	N/A
(SDD-330-10)	10A	Not Available	0-330VDC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(SDD-60-3.12.P5)	3A	3-32 VDC(5/12/24/48)	0-60VDC	3-32 VDC(5/12/24/32)	5-60 VDC	N/A	N/A	N/A	N/A	3A	N/A	6 VDC	5 – 60 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	16 gms	– 30°C to + 125 °C	N/A
(SDD-100-3. 12.P5)	3A	3-32 VDC(5/12/24/48)	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	3A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-60-5.12.P5)	5A	3-32 VDC(5/12/24/48)	0-60VDC	3-32 VDC(5/12/24/32)	5-60 VDC	N/A	N/A	N/A	N/A	5A	N/A	6 VDC	5 – 60 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	16 gms	– 30°C to + 125 °C	N/A
(SDD-100-5.24.P5)	5A	3-32 VDC(5/12/24/48)	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	5A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-60-10.48.P5)	10A	3-32 VDC(5/12/24/48)	0-60VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	10A	N/A	6 VDC	5 – 60 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	16 gms	– 30°C to + 125 °C	N/A
(SDD-100-10.24.P5)	10A	3-32 VDC(5/12/24/48)	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	10A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-100-10P5)	10A	3.5-32VDC	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	10A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-100-10)	10A	3.5-32VDC	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	10A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-100-3)	10A	3.5-32VDC	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	3A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SDD-100-3)	10A	3.5-32VDC	0-100VDC	3-32 VDC(5/12/24/32)	5-100 VDC	N/A	N/A	N/A	N/A	3A	N/A	6 VDC	5-100 VDC	N/A	N/A	600 ms	500 ms	N/A	N/A	N/A	N/A	Min. 2500 VACrms	20 gms	– 30°C to + 125 °C	N/A
(SR3PD-4-10)	10A	15-32VDC	24-480VAC	24 VDC	48- 600VAC	N/A	15 VDC	1 VDC	N/A	10 A	100	1.6 VAC rms	100 to 480 VAC	N/A	< 3 mA rms	N/A	N/A	N/A	1000 V/μs	N/A	47 ~ 63 Hz	N/A	125 gms	– 40 °C to 100 °C	N/A
(SR3PD-4-25)	25A	15-32VDC	24-480VAC	24 VDC	48- 600VAC	N/A	15 VDC	1 VDC	N/A	25A	250	1.6 VAC rms	100 to 480 VAC	N/A	< 3 mA rms	N/A	N/A	N/A	1000 V/μs	N/A	47 ~ 63 Hz	N/A	125 gms	– 40 °C to 100 °C	N/A
(SR3PD-4-40)	40A	15-32VDC	24-480VAC	24 VDC	48- 600VAC	N/A	15 VDC	1 VDC	N/A	40A	400	1.6 VAC rms	100 to 480 VAC	N/A	< 3 mA rms	N/A	N/A	N/A	1000 V/μs	N/A	47 ~ 63 Hz	N/A	125 gms	– 40 °C to 100 °C	N/A
(SR3PD-4-50)	50A	15-32VDC	24-480VAC	24 VDC	48- 600VAC	N/A	15 VDC	1 VDC	N/A	50A	550	1.6 VAC rms	100 to 480 VAC	N/A	< 3 mA rms	N/A	N/A	N/A	1000 V/μs	N/A	47 ~ 63 Hz	N/A	125 gms	– 40 °C to 100 °C	N/A
(SR3PD-4-75)	75A	15-32VDC	24-480VAC	24 VDC	48- 600VAC	N/A	15 VDC	1 VDC	N/A	75A	1000	1.6 VAC rms	100 to 480 VAC	N/A	< 3 mA rms	N/A	N/A	N/A	1000 V/μs	N/A	47 ~ 63 Hz	N/A	125 gms	– 40 °C to 100 °C	N/A
(S3-480-D-50AA-16.3)	50A	4-20mA	24-480VAC	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	50A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	4750 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-75AA-16.3)	75A	4-20mA	24-480VAC	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	75A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	14450 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-90AA-16.3)	90A	4-20mA	24-480VAC	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	90A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	19100 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-110AA-16.3)	110A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-125AA-16.3)	125A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-150AA-16.3)	150A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-175AA-16.3)	175A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-205AA-16.3)	205A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-50AA-16.6)	50A	4-20mA	24-480VAC	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	50A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	4750 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-75AA-16.6)	75A	4-20mA	24-480VAC	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	75A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	14450 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-90AA-16.6)	90A	4-20mA	24-480VAC	4-20mA	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	90A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	19100 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-110AA-16.6)	110A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-125AA-16.6)	125A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-150AA-16.6)	150A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-175AA-16.6)	175A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-205AA-16.6)	205A	4-20mA	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-50BB-16.3)	50A	0-10VDC	24-480VAC	0-10VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	50A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	4750 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-75BB-16.3)	75A	0-10VDC	24-480VAC	24-480 VAC rms	0-10VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	75A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	14450 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C
(S3-480-D-90BB-16.3)	90A	0-10VDC	24-480VAC	0-10VDC	480 VAC rms	Less than equal to 50mA	N/A	N/A	N/A	90A	N/A	N/A	0 to 100% VAC25 – 480 VAC	1200/1600 V Peak	<10 mA	N/A	N/A	N/A	1000 V/ mS	19100 A2 S	50/60 Hz	N/A	N/A	-40 to 80°C	100 °C
(S3-480-D-110BB-16.3)	110A	0-10VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-125BB-16.3)	125A	0-10VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-150BB-16.3)	150A	0-10VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
(S3-480-D-175BB-16.3)	175A	0-10VDC	24-480VAC	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A

Solid State Relay

Panel Mount Solid State Relay

DIN Rail Mount Solid State Relay

PCB Mount Solid State Relay

Single Phase Solid State Relay

Dual Phase Solid State Relay

Three Phase Solid State Relay

Solid State Relay AMP

Solid State Relay VAC

Solid State Relay VDC

Digital SCR Power Controller /Power Regulator

Call Us at

Email Us at
